When specifying digital infrastructure for fixed European out-of-home (DOOH) networks, retail glass facades, or transit interfaces, selecting the correct ingress protection (IP) rating is a fundamental procurement check. Over-specifying hardware drives up initial Capital Expenditure (CapEx), while an unsuitable enclosure or installation can expose components to water damage.
Select the IP classification against the actual water exposure and the tender requirements. For coastal sites, assess corrosion resistance separately; for cleaning, confirm the permitted method with the equipment manufacturer.
IP65 vs IP66 Ingress Protection: The European Selection Framework
Use these site conditions to prepare questions for the supplier and project designer. Match the selected IP classification to the specified exposure and the enclosure surfaces covered by the report.
| Site or operating condition | Question to resolve | Evidence to request |
|---|---|---|
| Rain-exposed installation | Which faces, joints and cable entries are covered by the report? | Exact model, tested assembly and installed enclosure layout. |
| Sheltered or recessed façade | Can water still reach the rear compartment and service openings? | Cladding, drainage and service-access details for the actual installation. |
| Coastal or salt-laden atmosphere | What corrosion exposure and material protection does the project specify? | Relevant coating, material and corrosion-test documentation, assessed separately from ingress protection. |
| Contract cleaning | Does the manufacturer permit the planned nozzle, pressure, distance and cleaning duration? | Written cleaning instructions matched to the maintenance contract. |
| Traffic or VMS tender | Which protection class, test method and report scope does the tender request? | A clause-by-clause match between the tender, offered model and supporting reports. |
| Temperature and humidity cycling | How will the enclosure manage the expected moisture and temperature conditions? | Condensation-control and ventilation details for the selected configuration. |
Technical Parameters: What the Ratings Actually Measure
An IP classification describes enclosure protection under the test conditions of IEC 60529. Check the exact model, assembly configuration and rated surfaces in its test report.
In IP65 and IP66, the first digit 6 denotes the dust-tight classification. The differing second digits refer to different water-jet test conditions.
| Parameter | IP65 | IP66 |
|---|---|---|
| Dust classification | 6: dust-tight | 6: dust-tight |
| Water-test classification | IPX5: water jets | IPX6: powerful water jets |
| Nozzle diameter | 6.3 mm | 12.5 mm |
| Water flow rate | 12.5 L/min | 100 L/min |
Method reference: Exotest’s IPX5/IPX6 water-jet testing. Check the full procedure and tested configuration in the applicable report.
The IP65 and IP66 tests use different nozzle and water-flow conditions. The ratio between the stated flow rates is not a multiplier for the display’s overall weather resistance. Check which enclosure surfaces and connections the test report covers.
Critical Protection Gaps Not Covered by IP Ratings
B2B buyers must understand that standard Ingress Protection testing does not validate performance across three major outdoor deterioration threats:
1. Salt Spray and Chloride Oxidation
For coastal projects, assess corrosion resistance separately from ingress protection. IEC 60068-2-52 describes cyclic salt-mist testing. Confirm the corrosion requirements, material and coating specifications, and applicable test conditions for the proposed cabinet.
2. Ultraviolet Gasket Aging
Seals can deteriorate with exposure and servicing. Include gasket condition, compression and replacement guidance in the maintenance plan, and check any ageing conditions stated in the test report.
3. Thermal Cycling Condensation
Check the expected temperature and humidity cycles, condensation control, and the effect of any vents or drainage on the specified enclosure protection. Review these details for the installed configuration.
Assessing the Sufficiency of IP65 for Fixed European DOOH
Assess an IP65 option against the site survey, tender requirements and manufacturer’s instructions.
Façade Mounts, Cleaning and Report Coverage
The following checks help evaluate the proposed configuration:
- Façade and flush wall mounts: Identify how water could reach the rear, cable entries and service openings. Confirm the cladding, drainage and service-access details.
- Cleaning and maintenance: Match the planned cleaning method to the manufacturer’s written instructions for the selected cabinet.
- Report coverage: Verify the issuer, test method, exact model and tested assembly, including the relevant cable entries, connectors and power compartments.
Where IP65 Reaches Its Practical Limits
For free-standing displays, review rain exposure on every relevant surface, cable entry and joint. Installation tolerances, sealing details and cabinet condition remain part of the acceptance review for either rating.
When Should an Outdoor LED Display Specify IP66?
Specify IP66 when the project’s stated exposure or tender calls for that classification. Check the following situations before ordering.
1. Cleaning and Maintenance Requirements
Confirm the permitted cleaning pressure, nozzle, distance and duration with the equipment manufacturer. Align the maintenance contract with those instructions before procurement.
2. Specialized Public Transportation and ITS Tenders
For variable-message signs, capture the tender’s exact environmental and equipment requirements, including any references to EN12966, before comparing cabinets.
Confirm whether the tender requests whole-cabinet or surface-specific protection, and record the required supporting evidence.
For road tenders: Map each requested test or document to the exact equipment being offered. Ask the procuring authority to clarify any ambiguous requirement before the submission deadline.
3. Marine and Coastal Site Requirements
For ferry terminals, ports and seafront sites, evaluate water exposure, corrosion and condensation separately. Match these requirements to the chosen cabinet’s reports, coatings and maintenance instructions.
Optimizing Project TCO via Chipshow’s European Logistics Hub
Confirm the quoted configuration, stock availability and delivery schedule with our local European fulfillment warehouse in the Netherlands:

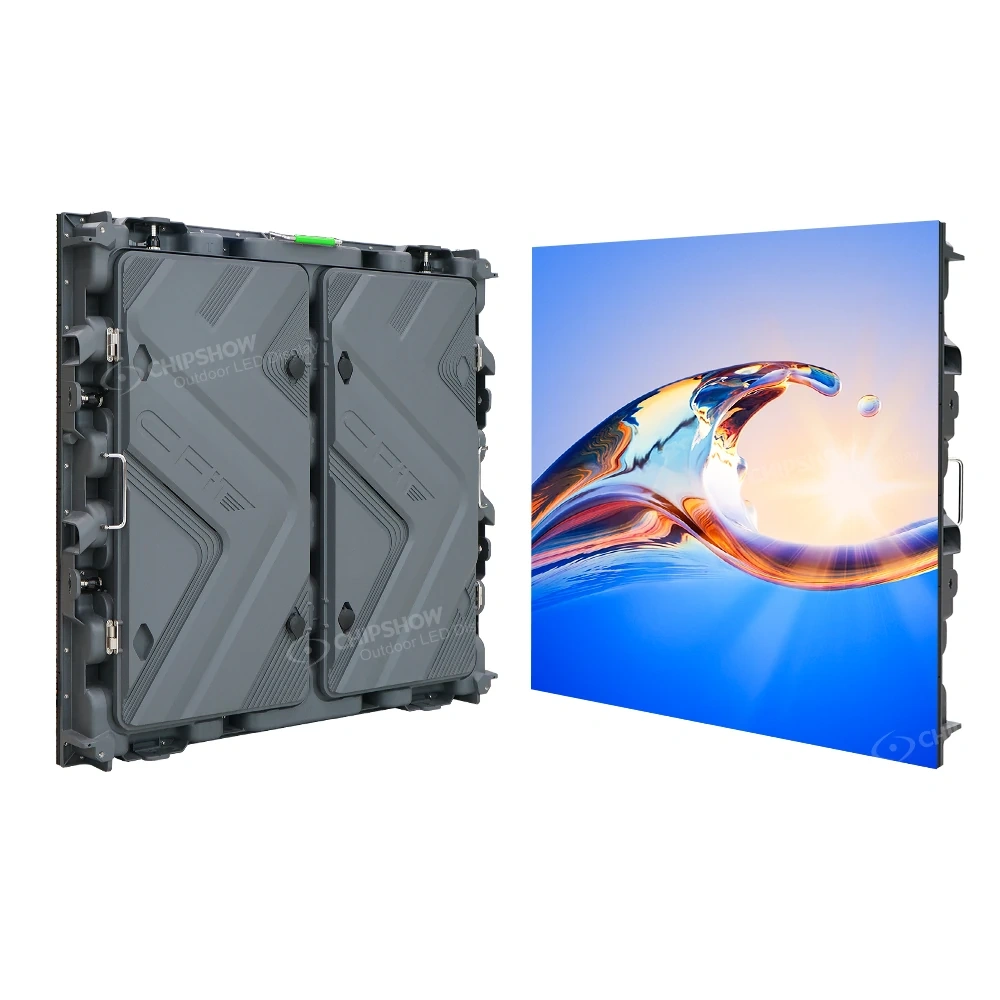

C-Slim Series (P5 Outdoor Fixed Display): Our flagship premium commercial solution. Built with a highly precise magnesium alloy frame and fully enclosed modules, it delivers IP65 front and rear protection tailored for high-uptime building facades and urban DOOH networks.
C-Smart Series (Outdoor Smart Modules with configurable pixel pitches, e.g. P3.91 or P5): A cabinet-free, frame-mounted solution that minimizes structural weight (≤25–29 kg/m²). It utilizes fully sealed modules that provide resilient weather protection, making it excellent for close-range retail storefront windows and flush wall installations.
C-Shine-Plus / C-Rock Series: Specialized high-refresh outdoor platforms featuring robust sealing mechanisms, engineered to reduce changeover downtime for temporary rental stages and event architectures across Europe.
