For European Digital Out-of-Home (DOOH) media operators, infrastructure contractors, and network owners, an outdoor LED screen functions as a revenue-generating physical asset. Whether deployed along major motorway corridors, integrated into urban retail façades, or mounted on landmark building envelopes—as Chipshow has done for projects in cities including Berlin, Rotterdam, and Madrid—the display must deliver consistent daylight visibility, reliable alignment, and minimal downtime to sustain advertising contracts across the European market.

A persistent challenge facing operators across the EU is the over-reliance on upfront Capital Expenditure (CAPEX) when evaluating hardware procurement. The real determinant of network profitability is Operational Expenditure (OPEX)—particularly in regions where electricity tariffs range from €0.25 to €0.40 per kilowatt-hour, and where structural engineering compliance imposes significant retrofitting overheads.

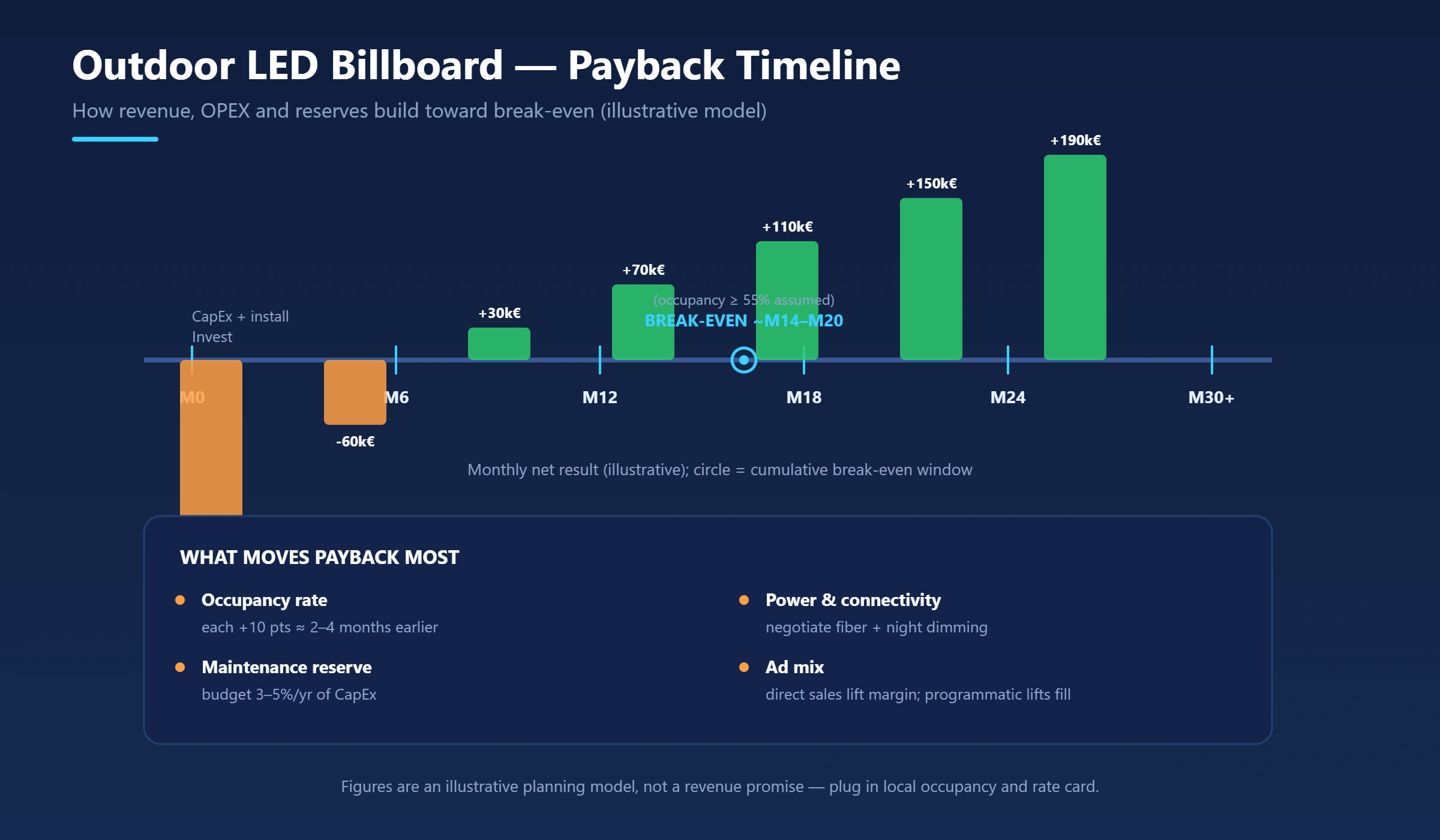

To provide a disciplined financial framework, the long-term economic performance of a DOOH asset can be expressed through the following model:

DOOH Screen ROI = Advertising Revenue − Power Cost − Maintenance Cost − Downtime Loss − Structural Cost

This formula captures both CAPEX depreciation and ongoing OPEX factors, enabling procurement teams to assess total financial performance rather than initial purchase price alone.

The Chipshow C-Slim (MA) Series, compliant with EU regulatory frameworks including CE (EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU) and RoHS 2 (2011/65/EU), is engineered to address every variable in this equation. Below is an examination of the platform’s architecture against European operational requirements.

1. Energy Efficiency: Common Cathode Driving and the 30% Power Saving That Matters at European Tariffs

For operators across the EU, the monthly electricity bill is the single most predictable threat to asset profitability. An outdoor billboard operating 18 hours daily consumes substantial grid power. At €0.30–€0.40/kWh—typical for commercial users in Germany, the Netherlands, and Scandinavia—energy costs compound rapidly over a 100,000-hour design life.

The C-Slim (MA) Series addresses this through Common Cathode circuit architecture. Traditional Common Anode designs supply uniform maximum voltage to Red, Green, and Blue LED dies, dissipating the excess as thermal waste across the PCB. By contrast, the C-Slim (MA) separates electrical grounds and delivers dedicated dual-voltage lines matched to each colour die’s physical requirements. The result is a documented 30% energy saving versus Common Anode equivalents.

Maintaining an optimised average power draw of 150–205 W/m² (configuration dependent), the C-Slim (MA) keeps monthly OPEX controlled without compromising luminance output—a critical consideration under the EU Energy-Related Products (ErP) Directive framework.

2. Adaptive Brightness for European Latitude Extremes: From Nordic Winters to Mediterranean Summers

European DOOH networks span dramatically different solar conditions—from prolonged winter darkness in Stockholm and Oslo to intense, unshaded summer sunlight in Madrid, Rome, and Athens. A fixed-brightness panel cannot serve both extremes without either appearing washed out or wasting energy.

The C-Slim (MA) Series, available with high-efficiency ICE LED technology, delivers a white-balance-calibrated output range spanning 5,500 nits (standard operation) to 12,000–14,000 cd/m² (high-ambient scenarios for south-facing installations). Crucially, this is achieved without overdriving the LEDs, avoiding the thermal degradation that shortens diode lifespan.

The platform integrates five distinct brightness and power modes mapped to automatic ambient light sensors. This allows operators to programme dynamic output profiles that scale between overcast mornings, direct midday exposure, and local evening compliance zones—maximising visual impact when required while actively reducing component wear and energy consumption during low-demand hours.

3. Magnesium Alloy Cabinet: Enabling Installation on Historic and Load-Restricted European Structures

A significant structural challenge in the European market is the prevalence of historic building envelopes, narrow urban façades, and listed structures where building permits limit additional static loading. Traditional steel or iron cabinets impose heavy dead-weight loads, triggering costly secondary steel reinforcement, prolonged municipal approval processes, and deep foundation works.

The C-Slim (MA) platform addresses this with a high-precision die-cast Magnesium Alloy Cabinet, machined via CNC processing. The 960×960 mm standard frame maintains an ultra-light profile of ≤29 kg (≤63.9 lbs) at only 94 mm thickness, enabling compliance with strict European wind-load calculations (Eurocode EN 1991-1-4) and structural safety regulations without requiring excessive reinforcement. This mass reduction can significantly lower steel infrastructure costs and unlock premium installation sites—such as heritage-adjacent retail districts—previously deemed structurally non-viable.

4. Dual-Access Maintenance Architecture: Keeping European Urban Sites Operational

European city centres and high-density commercial zones impose severe spatial constraints on screen maintenance. Building façades, narrow pedestrian walkways, and canal-side installations leave no room for rear access service corridors. Any system that requires exclusively rear-side maintenance can result in prolonged dark screens, expensive crane mobilisation, and municipal penalty fees.

The C-Slim (MA) features a complete dual-access service framework: modules, PSUs, receiving cards, and internal wiring harnesses are fully detachable from the front face using a magnetic tool—in seconds—without disturbing occupied interior spaces. Internal data and power cabling is routed through hidden interlocking hub channels, preventing loose cable degradation from moisture or wind friction.

For traffic and VMS applications on EU motorways, the platform also meets relevant EN12966 structural and optical compliance requirements, ensuring suitability for intelligent transport system deployments governed by national road authorities.

5. IP66 Front and Rear Protection: Engineered for European Coastal, Alpine, and Continental Climates

European DOOH installations face diverse environmental stress: salt-laden sea mist along the North Sea and Mediterranean coasts, fine wind-blown sand in southern regions, sub-zero winter temperatures across the Alps, and high humidity transitions in Atlantic-facing zones.

Standard outdoor panels frequently rely on external cabinet doors as the primary environmental barrier, leaving internal electronics exposed to moisture condensation when cold nights transition to warmer days. The C-Slim (MA) eliminates this single-point dependency through a fully enclosed module pod design, where each module features an independent, rear-sealed protective casing. Combined with specialty waterproof sealing rings at cabinet interlocks, the system achieves a certified IP66 protection rating on both front and rear surfaces, with a verified operating threshold of −20°C to +50°C.

This dual-surface ingress shielding protects driver electronics, copper contacts, and connectors from corrosion, sand infiltration, and humidity—critical for maintaining uptime across Europe’s climatic diversity.

6. Value Engineering Matrix: C-Slim (MA) Performance Mapping for European Operations

All C-Slim (MA) components comply with the WEEE Directive 2012/19/EU for end-of-life electronic waste management. Stocked at our Rotterdam warehouse, standard configurations ship within 24–48 hours to all EU member states duty-free.

Frequently Asked Questions

Q1: How does the C-Slim (MA) 30% energy saving translate to real cost reduction for European operators?

At an average European commercial electricity rate of €0.30–0.40/kWh, a 100 m² billboard operating 18 hours daily would save approximately €3,000–8,000 per year compared with a standard Common Anode equivalent, depending on brightness mode and local tariff rates.

Q2: Is the C-Slim (MA) compliant with EU regulations for outdoor digital signage?

Yes. The C-Slim (MA) Series holds CE certification under the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Electronic components comply with RoHS 2 (2011/65/EU) and WEEE Directive 2012/19/EU. For traffic and VMS deployments, the platform meets relevant EN12966 standards.

Q3: Can the C-Slim (MA) be installed on historic or load-restricted buildings?

Yes. The magnesium alloy cabinet weighs ≤29 kg per 960×960 mm frame at 94 mm thickness, providing a structural footprint compliant with Eurocode EN 1991-1-4 wind-load calculations. This lightweight profile significantly reduces secondary steel reinforcement requirements, making it suitable for historic building envelopes and load-restricted urban façades.

Q4: What maintenance model does the C-Slim (MA) support for constrained urban sites?

The platform supports full dual-access service: modules, PSUs, and receiving cards are removable from the front face using a magnetic tool, without requiring rear access corridors. This is essential for dense European urban installations where building codes prohibit rear service space.

Q5: How does the IP66 rating protect against European coastal conditions?

The fully enclosed module pod design provides IP66 protection on both front and rear surfaces, with specialty waterproof sealing rings protecting all internal electronics from salt fog, humidity, and condensation—critical for installations along the North Sea, Baltic, Mediterranean, and Atlantic coastal zones.
