C-Smart Modular LED Sign
Designed to streamline European outdoor deployments, this integrated modular platform eliminates bulky traditional cabinets. Featuring up to IP66 protection and an ultra-thin profile, it allows direct wall mounting with full front access, reducing structural engineering costs for retail, community, and commercial signs.
| Item | Specification Parameter |
|
Pixel Pitch |
P4 / P5 / P6.67 / P10 |
|
Module Size |
640 × 320 mm |
|
Brightness |
Up to 11,800 nits (configuration dependent) |
|
System Thickness |
75 mm (including power box) |
|
Protection Grade |
IP65 / IP66 rated (model dependent) |
|
Compliance |
CE, RoHS, LVD Approved |
- Ultra-Slim Cabinet-Free Design: Integrated power and data design reduces heavy steelwork and simplifies architectural approval.
- True Wall-Mounting: Install directly onto facades with zero rear clearance required, achieving a clean 75mm flush finish.
- Dual Service Access: Rotate simple fast-locks for quick front or rear maintenance, saving expensive European labor time.
- Harsh Weather Ready: Enclosed chassis with up to IP66 ratings withstands heavy rain and freezing conditions without secondary enclosures.
- Passive Cooling: High-efficiency passive thermal design ensures low-noise operation for residential and premium retail zones.
- Compliance: Ready-to-ship from European inventory to support tight project deadlines and rapid rollouts.
Share

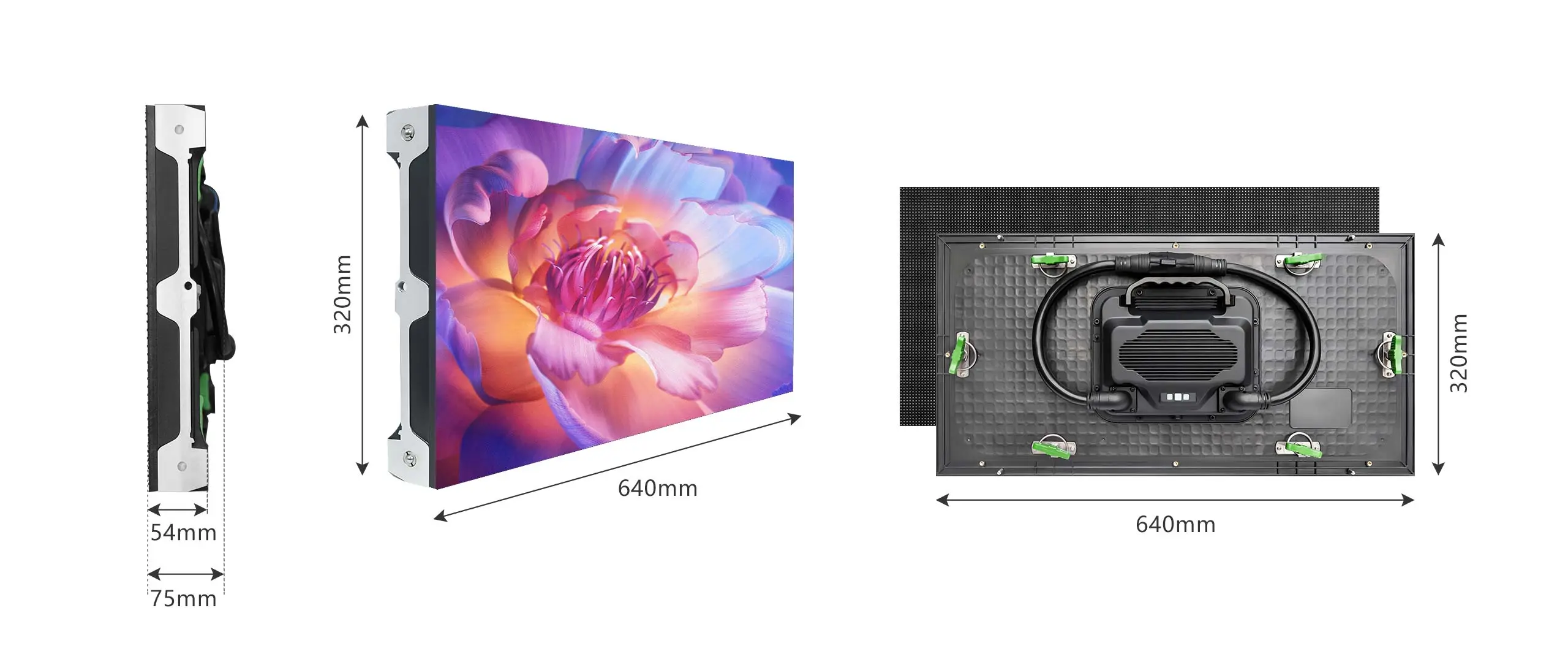

Simplified Structural Engineering
Replacing bulky metal cabinets with a sleek 640x320mm integrated modular platform cuts down on heavy steel frames, making structural approvals and installation significantly easier.

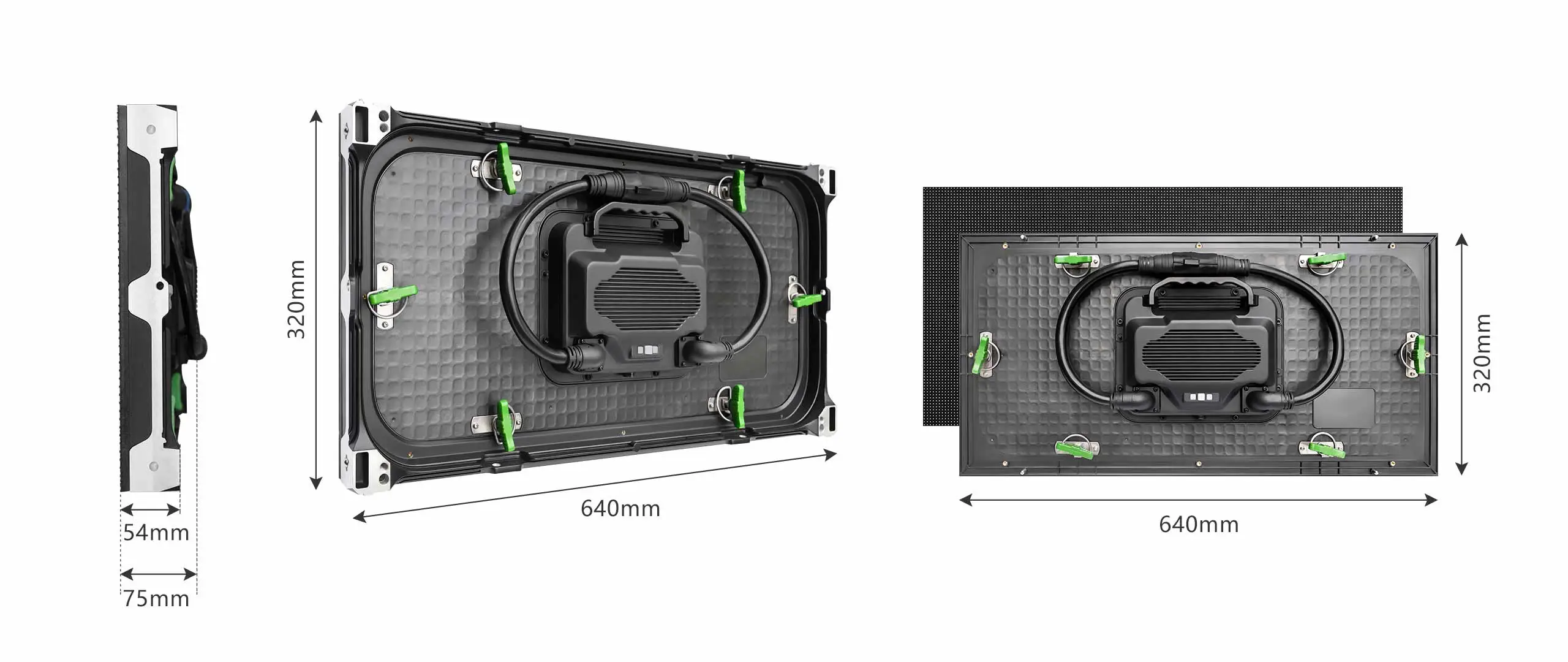

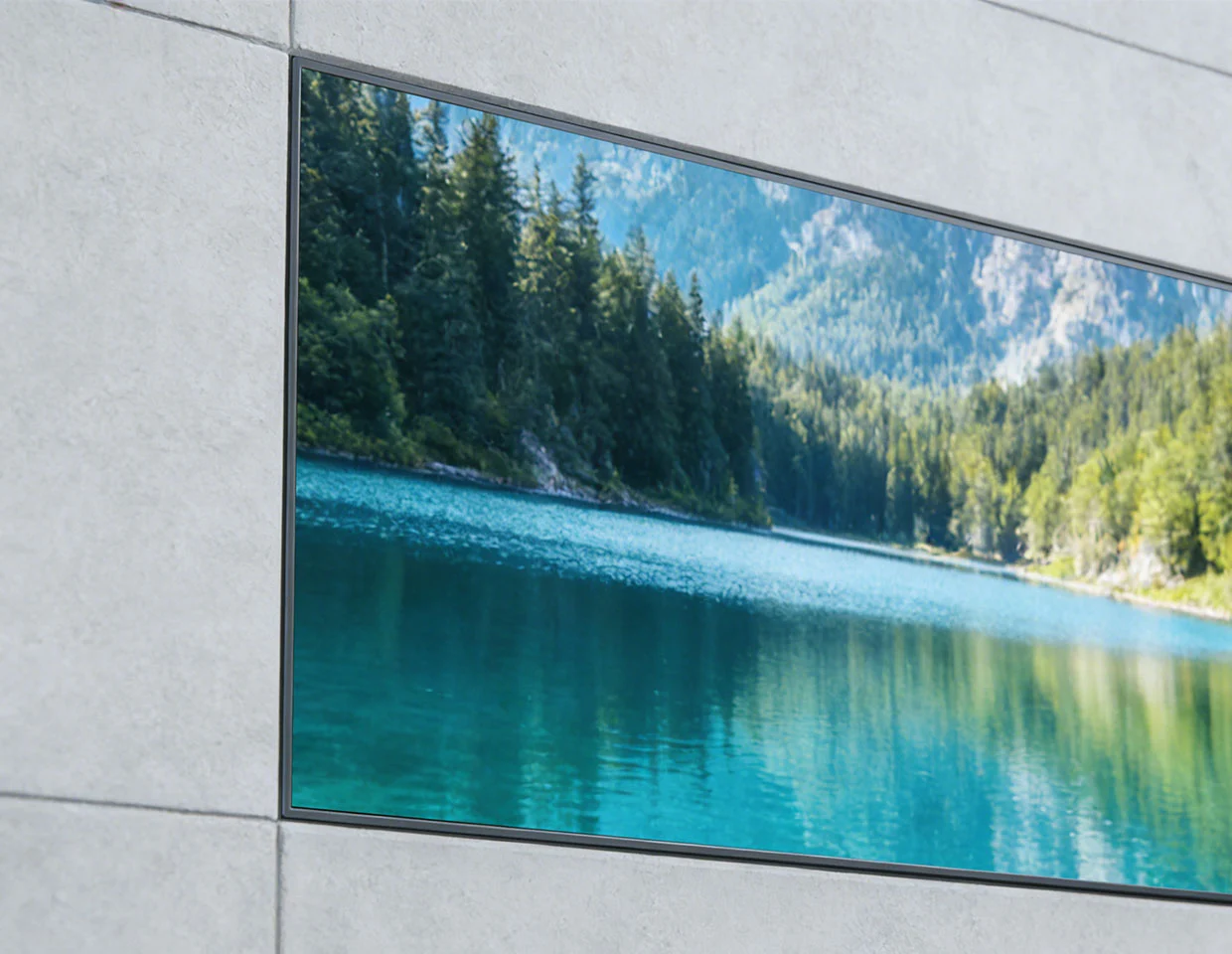

Zero Rear Clearance
Engineered for tight facades. The system mounts directly to exterior walls with a total depth of just 75mm, keeping the digital integration clean and unintrusive to the building.

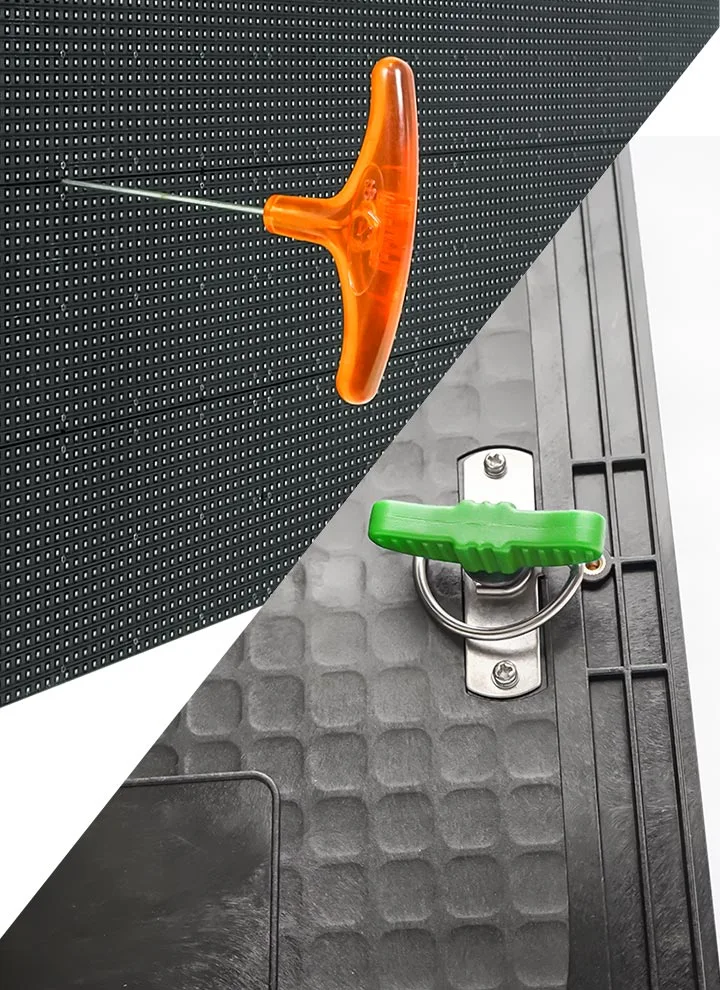

Hassle-Free Maintenance
Designed for field efficiency. Technicians can perform complete module, power, and data service from either the front or rear using intuitive rotary fast-locks.

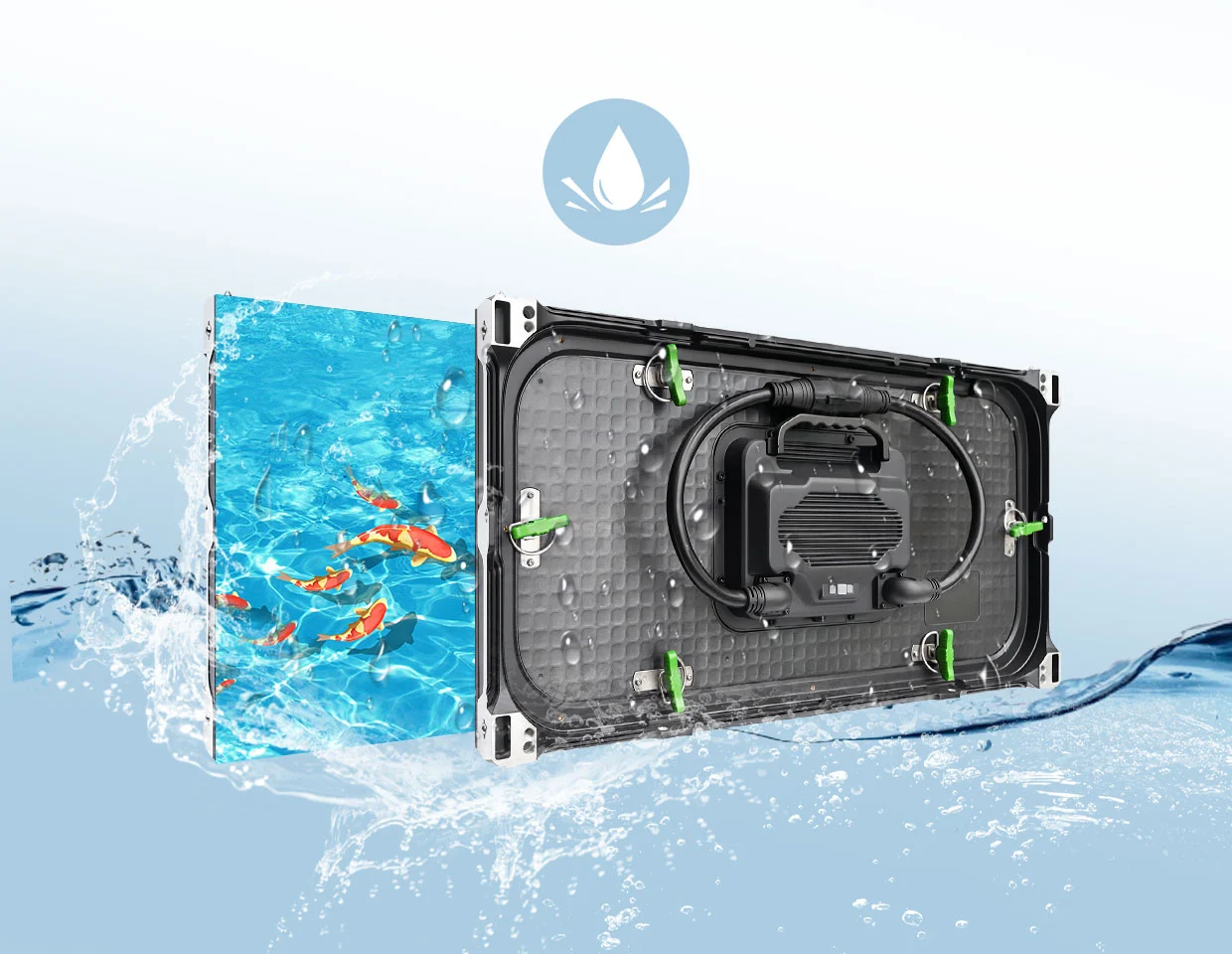

Resilient in Harsh Climates
Available with up to IP66-rated chassis, the electronics remain protected against heavy rain, coastal humidity, and freezing conditions without the need for extra protective housing.

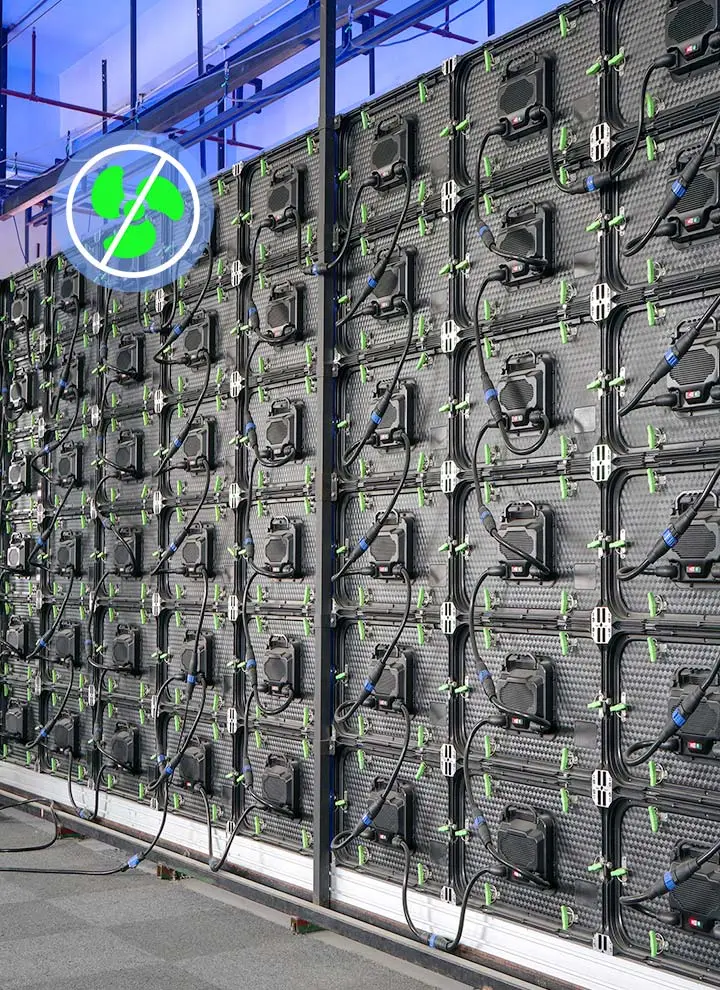

Community-Friendly Operation
A high-efficiency passive cooling architecture eliminates the need for mechanical fans, ensuring low-noise operation that avoids nuisance complaints in residential areas or premium shopping streets.
Compliant and Ready to Deploy
Fully certified with CE, RoHS, and LVD standards to ensure safe, legal operation. Backed by local European stocking for rapid project turnaround and reliable spare parts access.
Product Parameter
* Specs below reflect the selected configuration and are for reference only. Actual parameters vary by size, pixel pitch, brightness, power and control system. Customization available
Send a Comment
Product Highlights
Cabinet-Less Design
Eliminates heavy traditional cabinets to reduce dead load and simplify bracket structures.

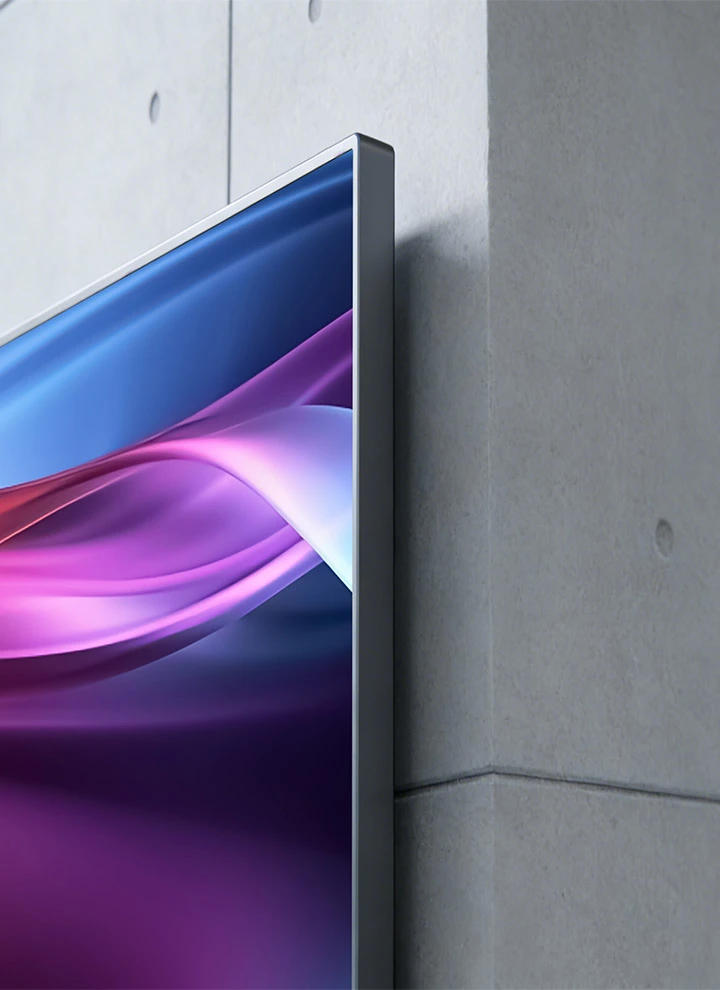

75mm Ultra-Thin
Supports flush wall-mounting without requiring rear maintenance space.
Front & Rear Service
Flexible access options align with architectural constraints and speed up repairs.
EU Stock & Certified
CE, RoHS, and LVD approved with local European inventory for fast delivery.
Application
Application Scenario
Retail Storefront Facade
Community & Church Signage
Gas Station & Drive-Thru
Related Solutions
Stage & Events Solution
Lightweight, fast-rigging rental LED displays for European events. CE/TUV certified, high refresh rates, and tool-free setup for concerts and corporate stages.
Outdoor DOOH Solution
Efficient outdoor LED for DOOH. High-brightness (up to 10k nits), energy-saving common cathode, and magnesium alloy designs for long-term ad revenue.
Retail & Shopping Mall Solution
Elevate European retail experiences with Chipshow LED. High-transparency facades, curved atrium screens (C-Shine Plus), and COB boutique walls. EU stocked.
Frequently Asked Questions
From specs and compatibility to warranty and support, our FAQ covers everything you need to know to get the most out of your experience.
-
+86 18148555033
-
manager@chipshow.com
-
Exportweg 8 9301 ZV Roden Netherlands
Do I need to build a heavy cabinet frame for this outdoor display?
No. The C-Smart series uses a cabinet-less integrated modular design. The 640x320mm modules integrate the power supply and receiving card, allowing them to be mounted directly onto a simple, lightweight installation bracket. This significantly reduces structural costs and dead load on the building.
