C-Slim Outdoor Fixed LED Display

Engineered for landmark billboards and urban facades. C-Slim balances exceptional daylight visibility with strict OPEX control, featuring common-cathode technology and a lightweight magnesium chassis to simplify strict structural approvals.

Home /
Products /
C-Slim Outdoor Fixed LED Display

C-Slim Outdoor Fixed LED Display

Q: How does the Common-Cathode technology impact long-term OPEX?

It reduces overall power consumption by up to 30%. Unlike traditional common-anode systems, common-cathode architecture supplies distinct, precise voltages to the Red, Green, and Blue LED chips. This significantly reduces wasted heat, leading to lower electricity bills.

Q: Is the 960x960mm magnesium cabinet suitable for older building facades?

Yes, it is specifically designed to reduce structural load. Weighing only 25kg per cabinet, the magnesium alloy construction is significantly lighter than traditional steel options. This minimizes the need for heavy, reinforcing steel structures, simplifying engineering approvals.

Q: Can we maintain the display if it is mounted flat against a wall?

Yes, the system supports full front serviceability. For locations where rear maintenance space is impossible (such as flush wall mounts), technicians can easily access and remove LED modules, power supplies, and receiving cards directly from the front using a simple tool.

Q: Does the display require external air conditioning in summer?

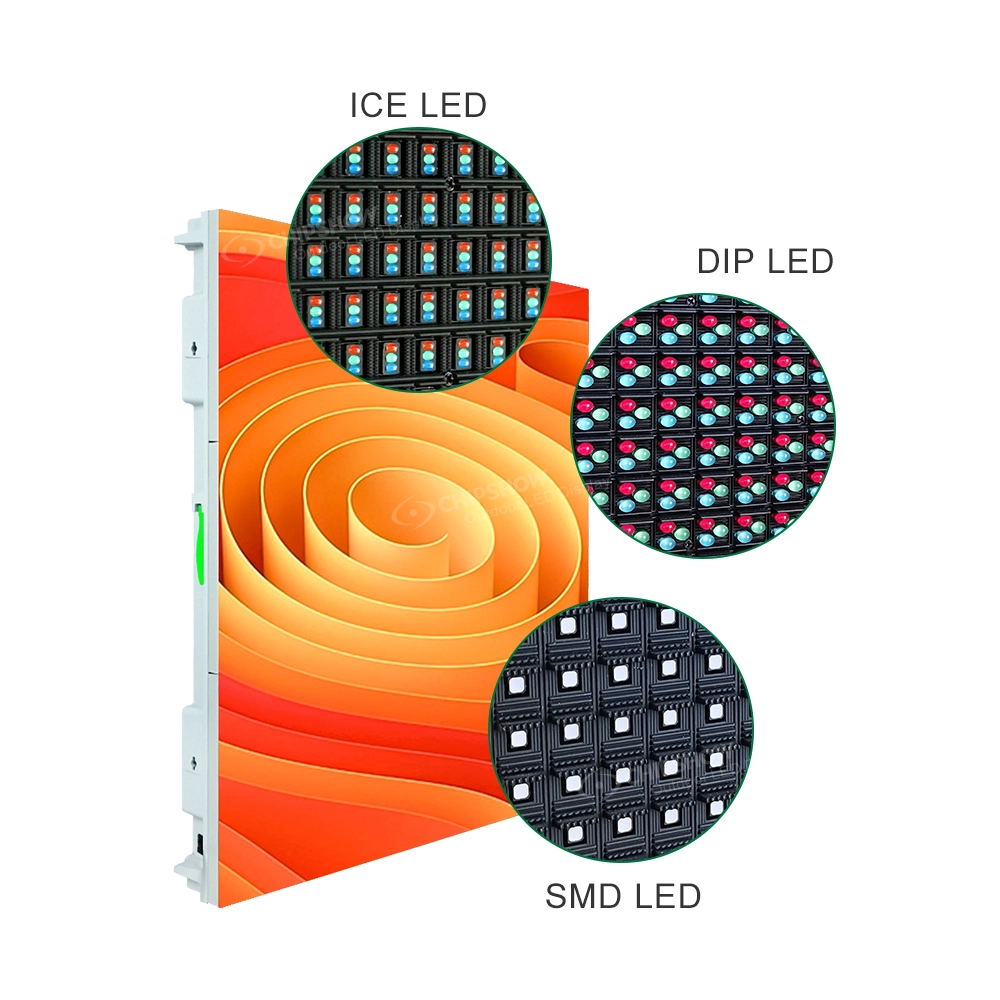

Generally, no. The combination of common-cathode efficiency, high-brightness ICE LEDs, and the magnesium cabinet's natural heat-conducting properties allows the display to run cooler than standard models. It operates stably in ambient temperatures up to +50°C

Specification

Pixel Pitch	P4 to P16
Brightness Range	5,000–14,000 nits (5 Preset Modes)
Cabinet Sizes	960×960×95 mm
Power Tech	Common-Cathode
Cabinet Weight	~25 kg (Magnesium Alloy)
Environmental	IP65 Front / Auto-dimming ready
Maintenance	True Front and Rear access

Daylight Dominance: Up to 14,000 nits ensures ad inventory remains highly visible and profitable even facing direct afternoon sun.
OPEX Optimization: Common-cathode architecture reduces wasted heat, cutting power consumption by up to 30% for long-term savings.
Regulatory Compliance: 5 preset brightness modes enable automated night dimming to meet stringent European light pollution laws.
Structural Relief: At just 25kg, the rigid magnesium alloy cabinet eases wind-load calculations and reduces heavy-steel requirements.
Site Flexibility: True front and rear serviceability ensures access whether mounted flat on a historic wall or a roadside monopole.
Thermal Stability: Aluminum-backed PCB modules dissipate heat naturally, extending LED lifespan during summer heatwaves.

Get Quote Now

Spec Sheet

Description

Solution

FAQs

Tuned for European Daylight

Five preset brightness modes (from 5,000 to 14,000 nits) help match site orientations. Conquer direct sunlight during the day while smoothly dimming at night to comply with local anti-glare ordinances.

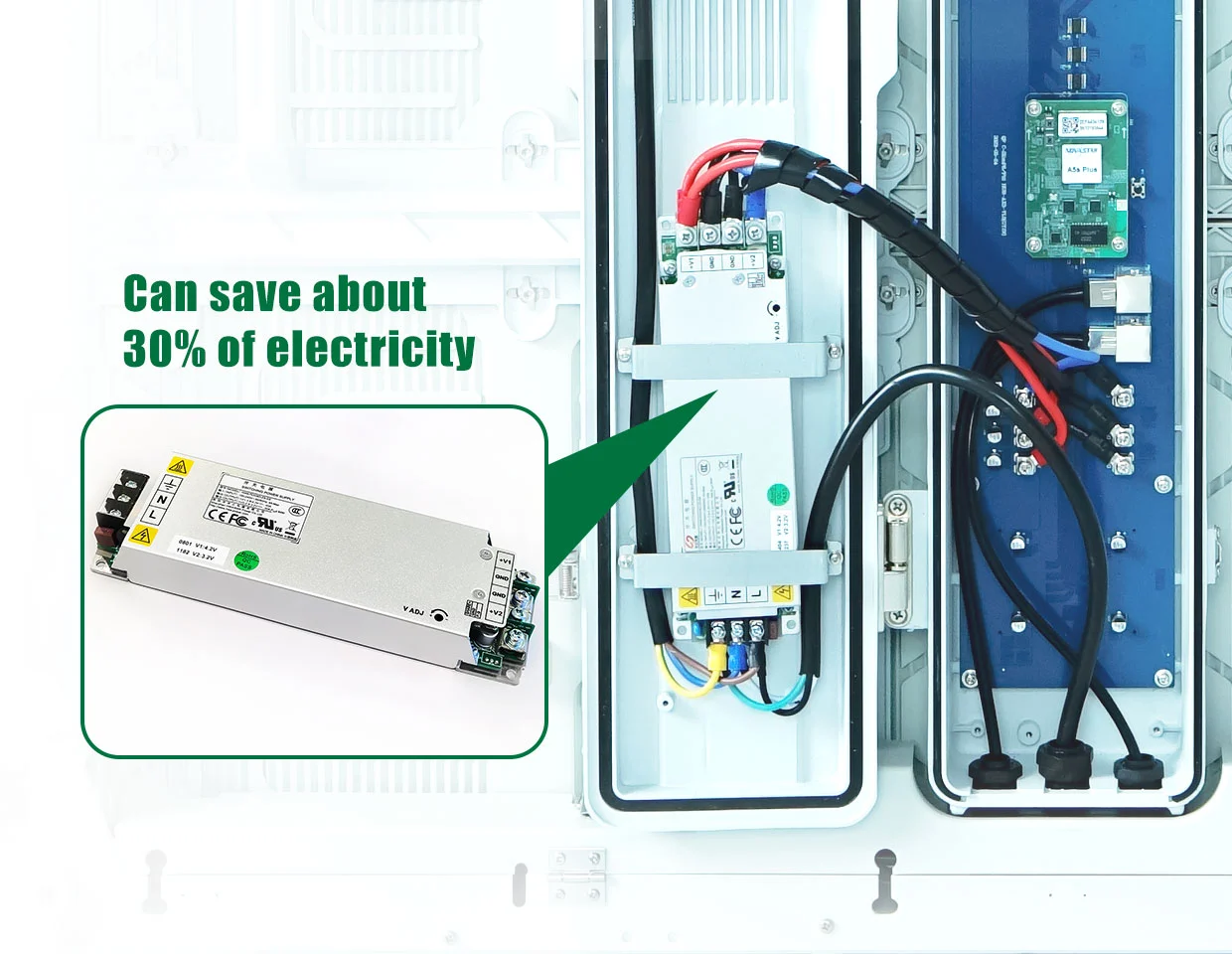

Common-Cathode Efficiency

Supplying precise voltage to RGB chips, this architecture reduces wasted heat. It cuts power consumption by up to 30% compared to conventional designs, directly supporting your ESG goals.

Ultra-Light Magnesium Build

Weighing only 25kg with a 95mm profile, the 960×960mm cabinet balances rigidity and weight. It eases structural load constraints, making it ideal for historic building facades and strict engineering approvals.

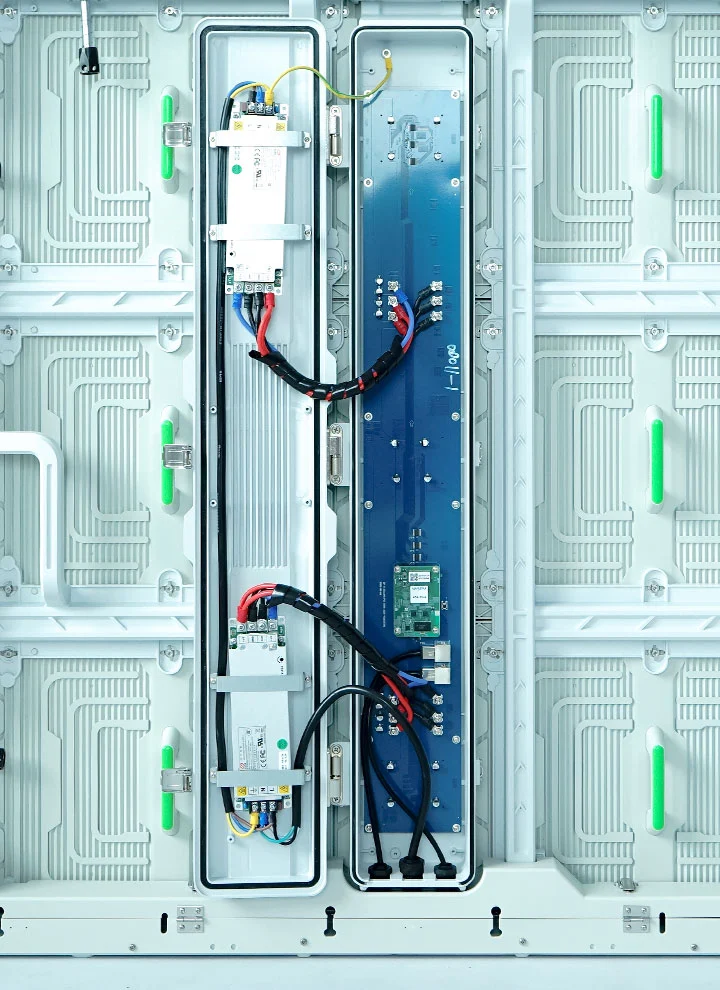

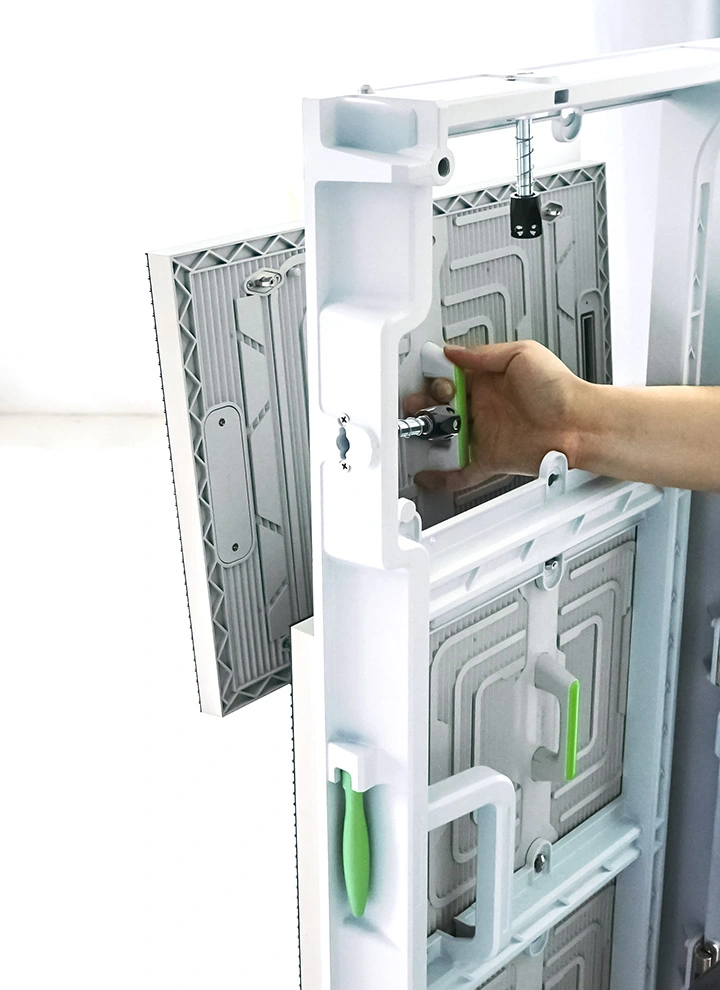

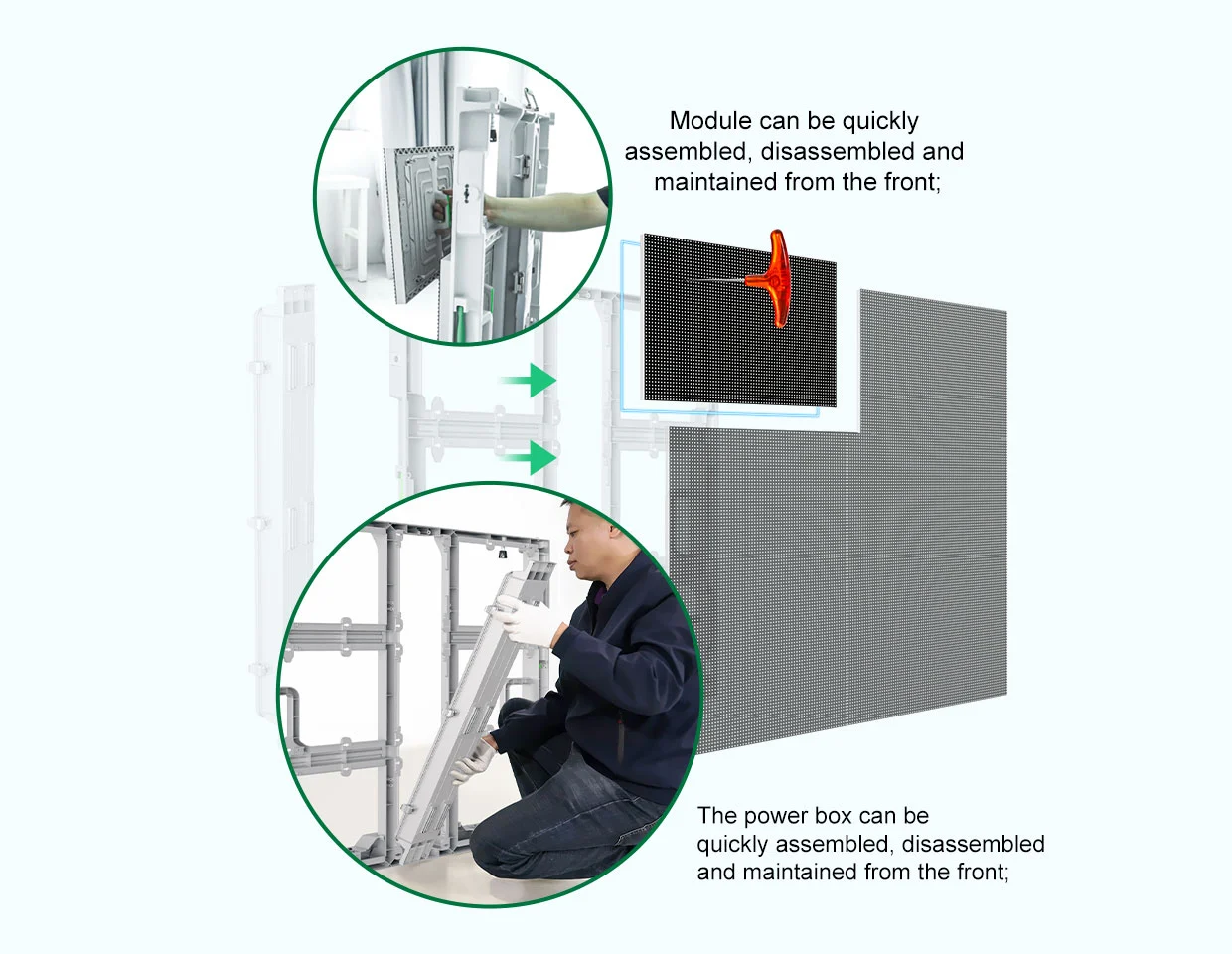

True Dual Service Access

Modules and power boxes are fully accessible from both the front and rear. This design removes installation roadblocks for flat wall-mounted retail setups and open-frame highway billboards.

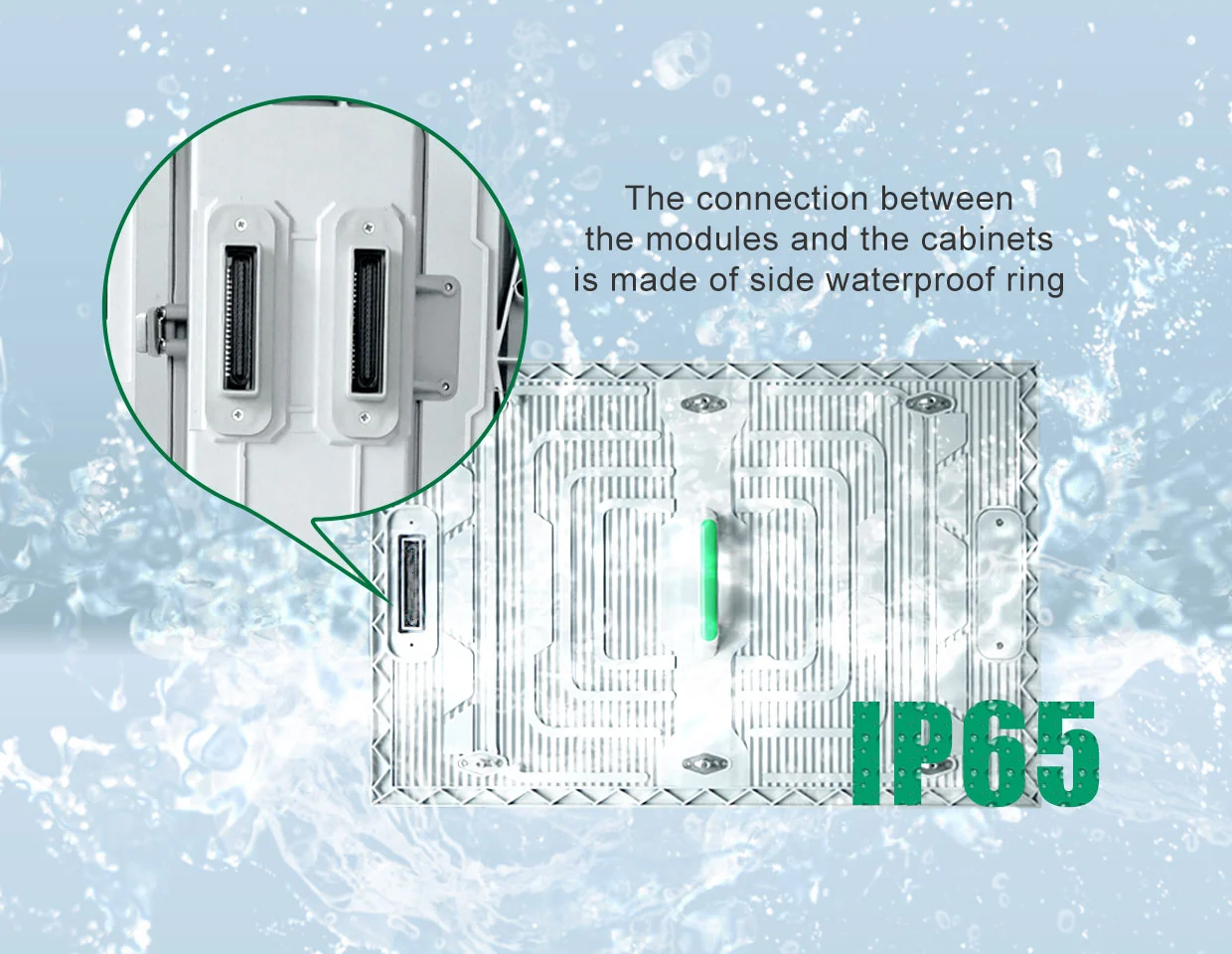

IP65 All-Weather Reliability

Fully enclosed modules featuring side waterproof rings deliver true IP65 protection. With hidden cabling and stable operation from -20°C to +50°C, it ensures safe performance across diverse climates.

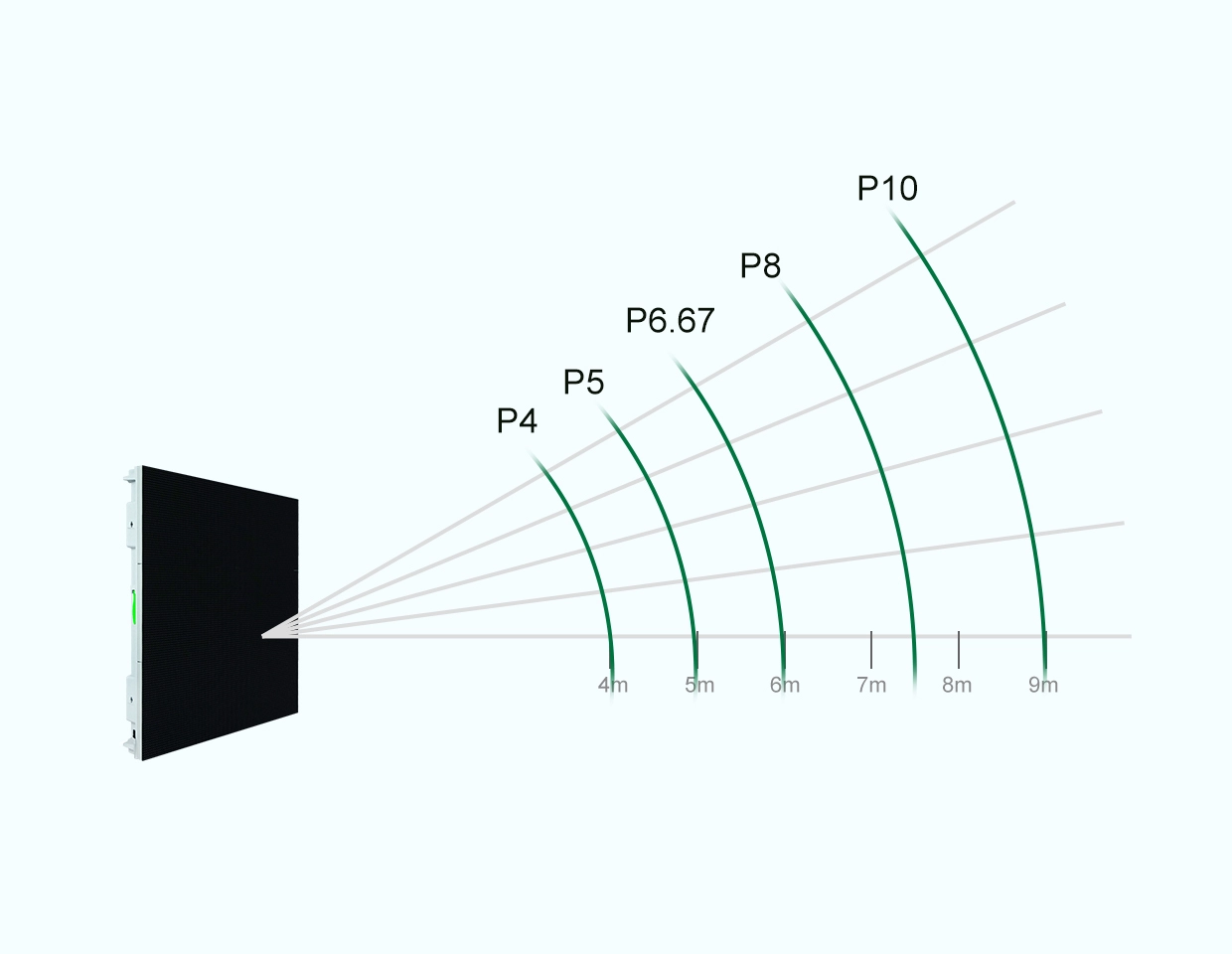

Comprehensive Pitch Portfolio

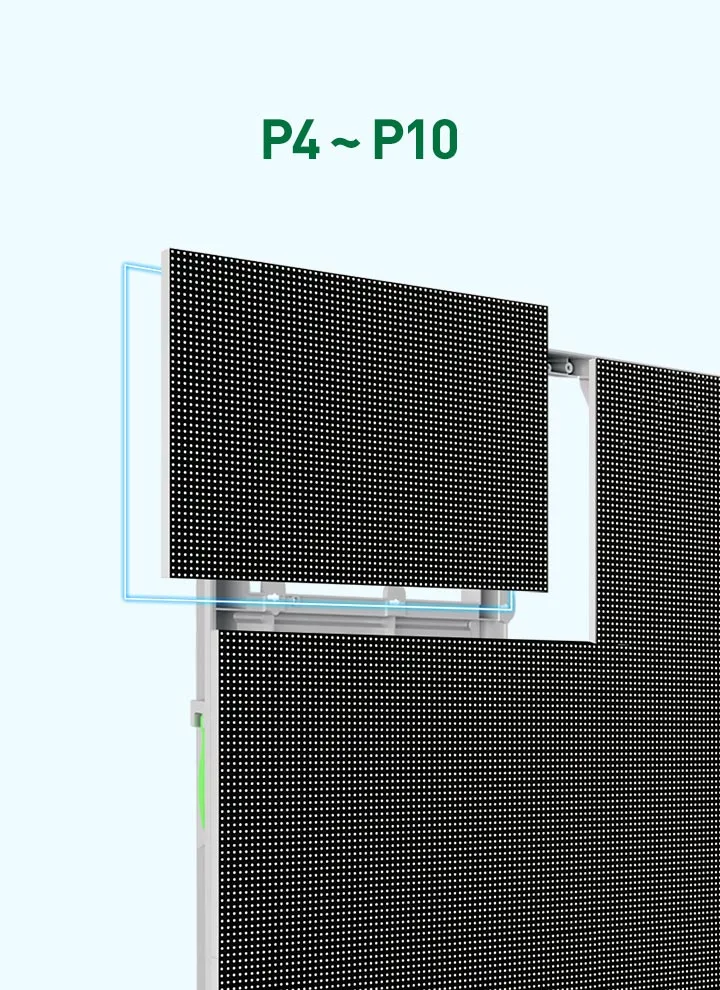

A single standardized 960x960mm platform covers pitches from P4 to P16. Maintain consistent mechanical standards across pedestrian street signage and long-distance highway displays to simplify technical training.

Send a Comment

Project stauts:*

This field is required.

Business email:*

This field is required.

Phone:

Your country:*

This field is required.

Width in millimeter:

Height in millimeter:

Uncertain size

Installation method:

Type:*

This field is required.

Message

Get Quote Now

Product Highlights

14,000-Nit Impact

Penetrates direct sunlight for maximum DOOH ad visibility.

Precision Weight Control

28kg to 52kg cabinets reduce structural wind load and steelwork costs.

Strict Eco-Compliance

Designed to meet tight European energy and structural regulations.

Tool-Free Access

Rapid front or rear module swapping keeps downtime to minutes.

Application Scenario

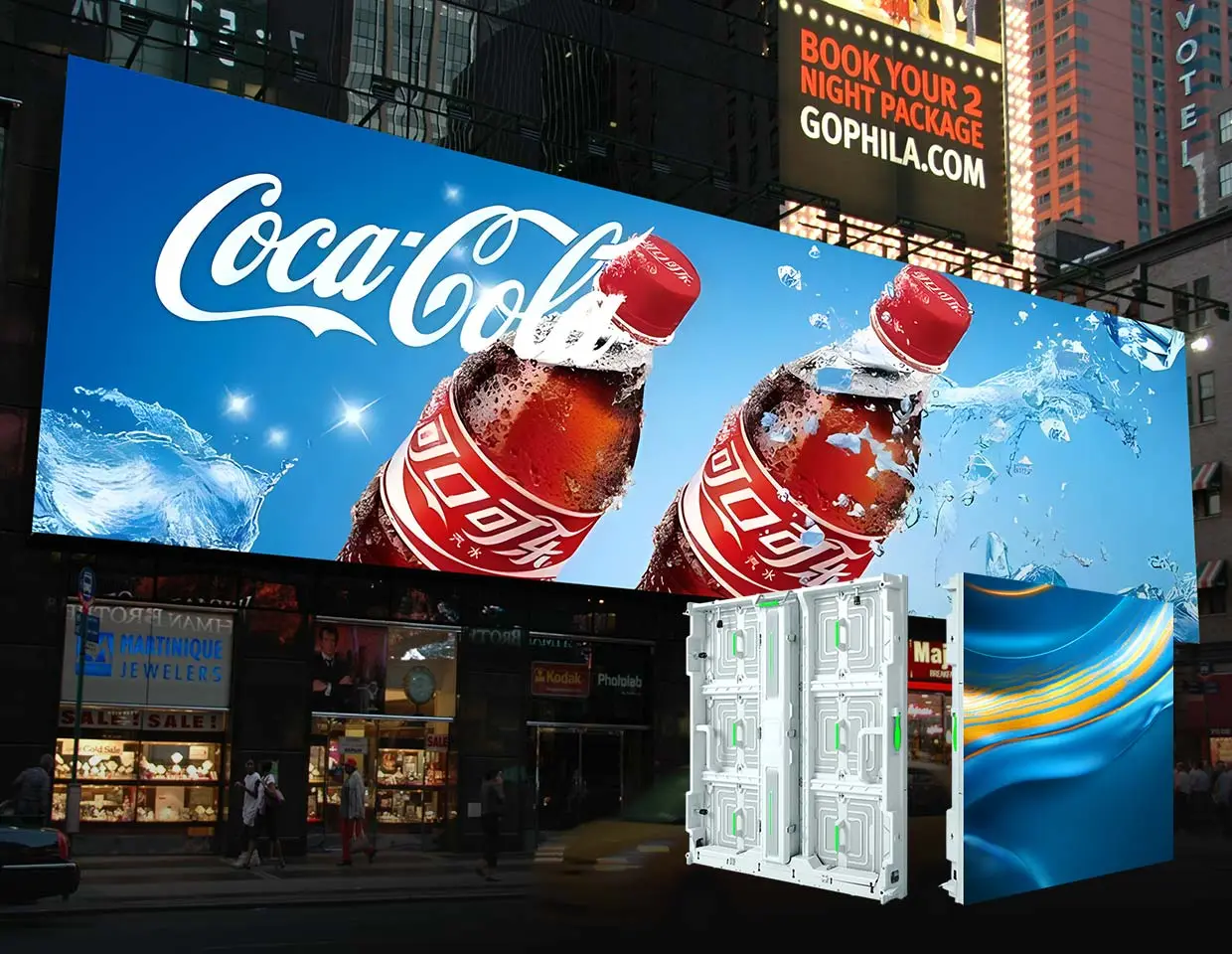

Premium Urban Façade

Wall-mounted displays on city buildings requiring lightweight cabinets and front-service access.

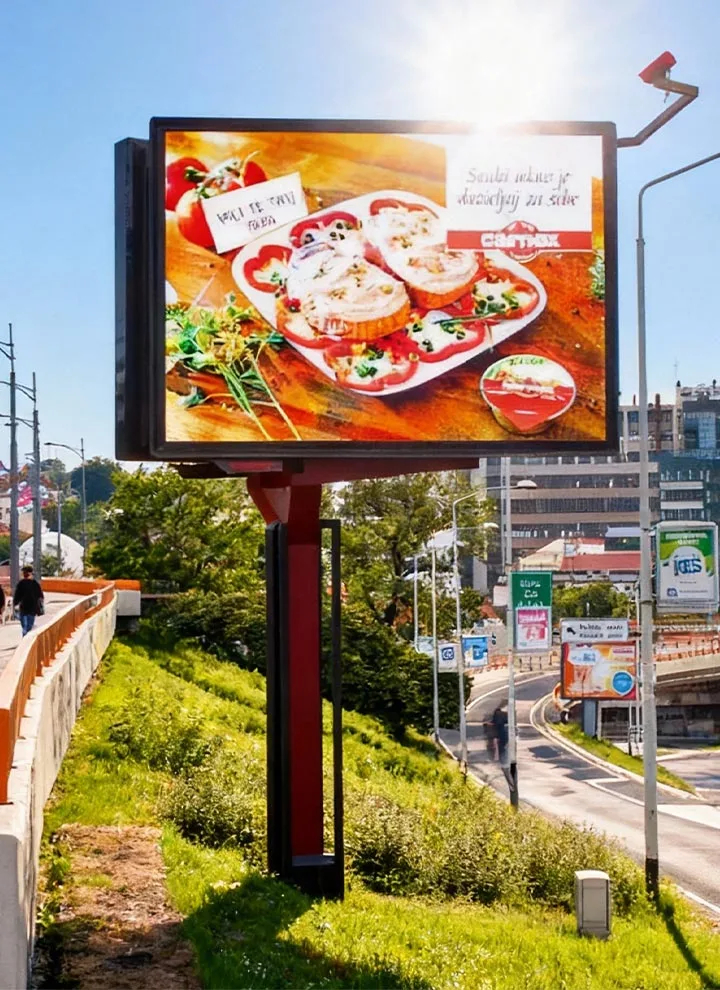

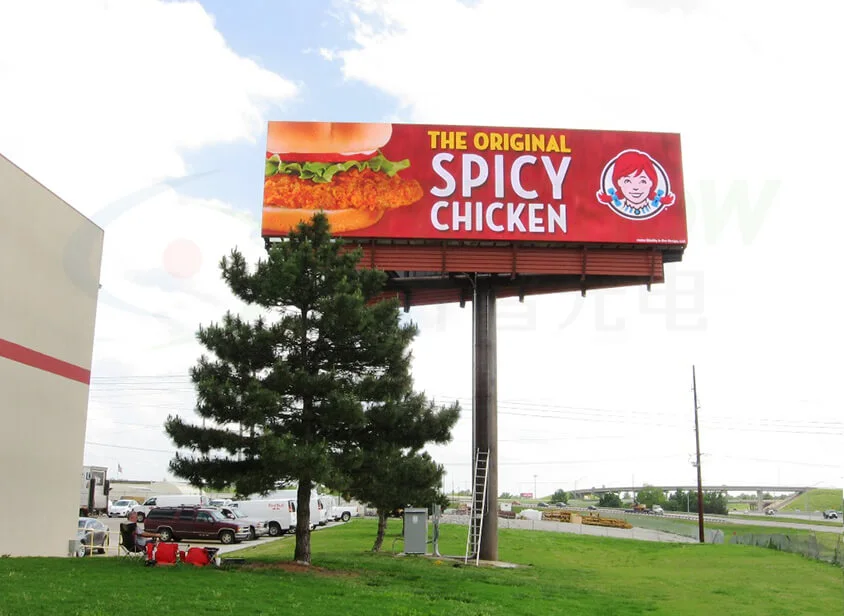

Highway & Roadside DOOH

High-impact roadside billboards where daytime brightness and wind-load safety are top priorities.

Frequently Asked Questions

From specs and compatibility to warranty and support, our FAQ covers everything you need to know to get the most out of your experience.

+86 18148555033
manager@chipshow.com
Exportweg 8 9301 ZV Roden Netherlands

Will a 14,000-nit display violate local city light pollution regulations?

No, it features automated dimming capabilities for full compliance. The C-Slim series offers 5 preset brightness modes. While it reaches 14,000 nits to combat direct afternoon sunlight, operators can automatically dim the display during evening hours, ensuring strict adherence to European anti-glare ordinances.
