C-Rock
C-Rock Deliver vivid visuals and reliable performance for public events, live music, stage shows and mobile-broadcast trailers.
| Pixel Pitch | P1.9/P2.6 /P2.97indoor P2.6/P2.97/P3.91 outdoor |
| Refresh Rate | 3840HZ~7680HZ |
| Service | Magnetic |
- 500x500mm&500x1000mm Cabinet
- Full front & rear service
- Modular magnetic design and Quick release with control box.
- One-Key Corner Protector
- Anti-loosening with safety rope.
- Light-Shielding cotton to prevent light leakage.

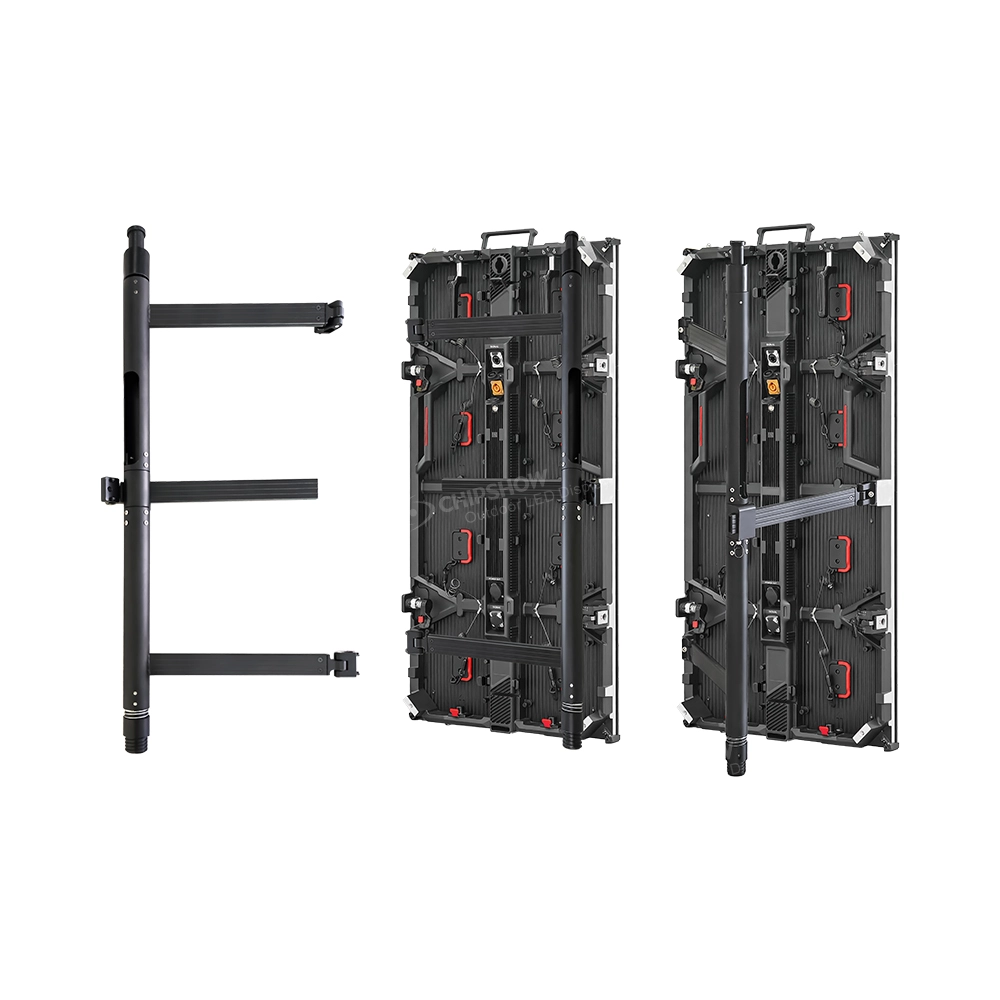

- Optional wind-resistant bracket
- Ingress protection

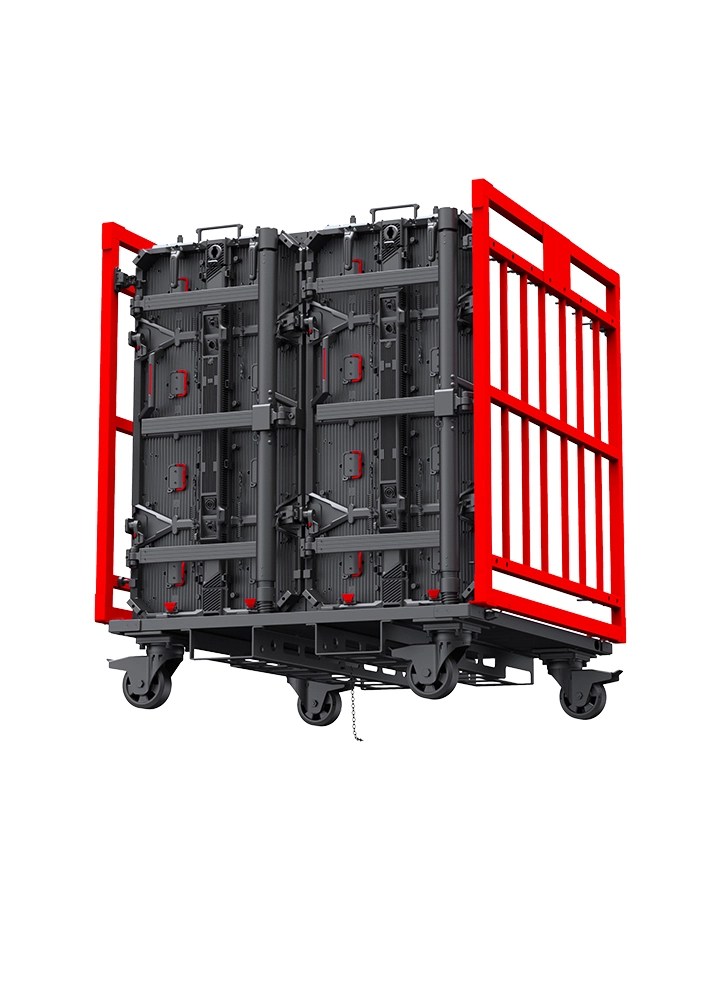

- Dolly for easy handling & setup
Share

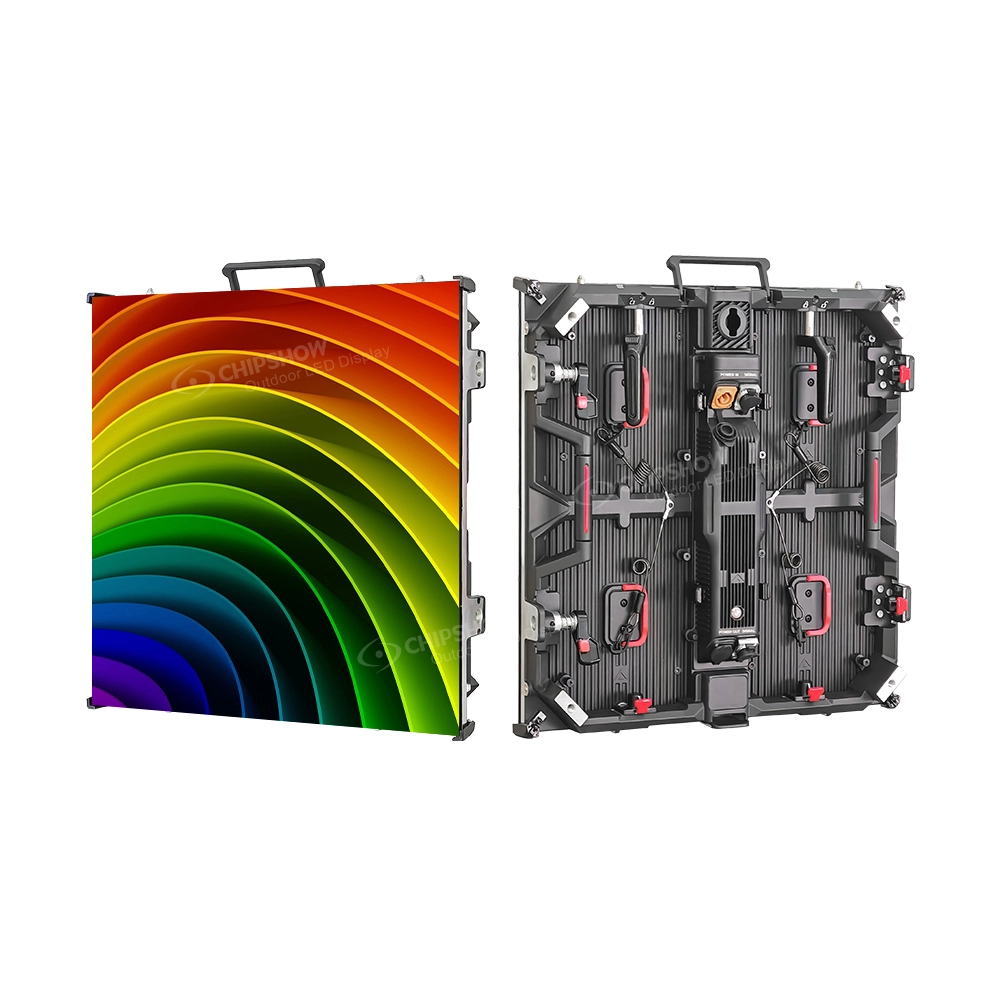

C-Rock rental led display
Chipshow’s C-Rock stage and events led display Advanced technology SMD 2in1 shows stunning visual effect. C-Rock provides quick installation through its arc locks & side locks enable quick, precise assembly Die-casting Aluminum cabinets with arc locks support -10° to +15° concave/convex curves for creative stage backdrops.
Outdoor LED Rental Screen
Full & Rear Maintenance , Magnetic design, Ultra-thin & lightweight

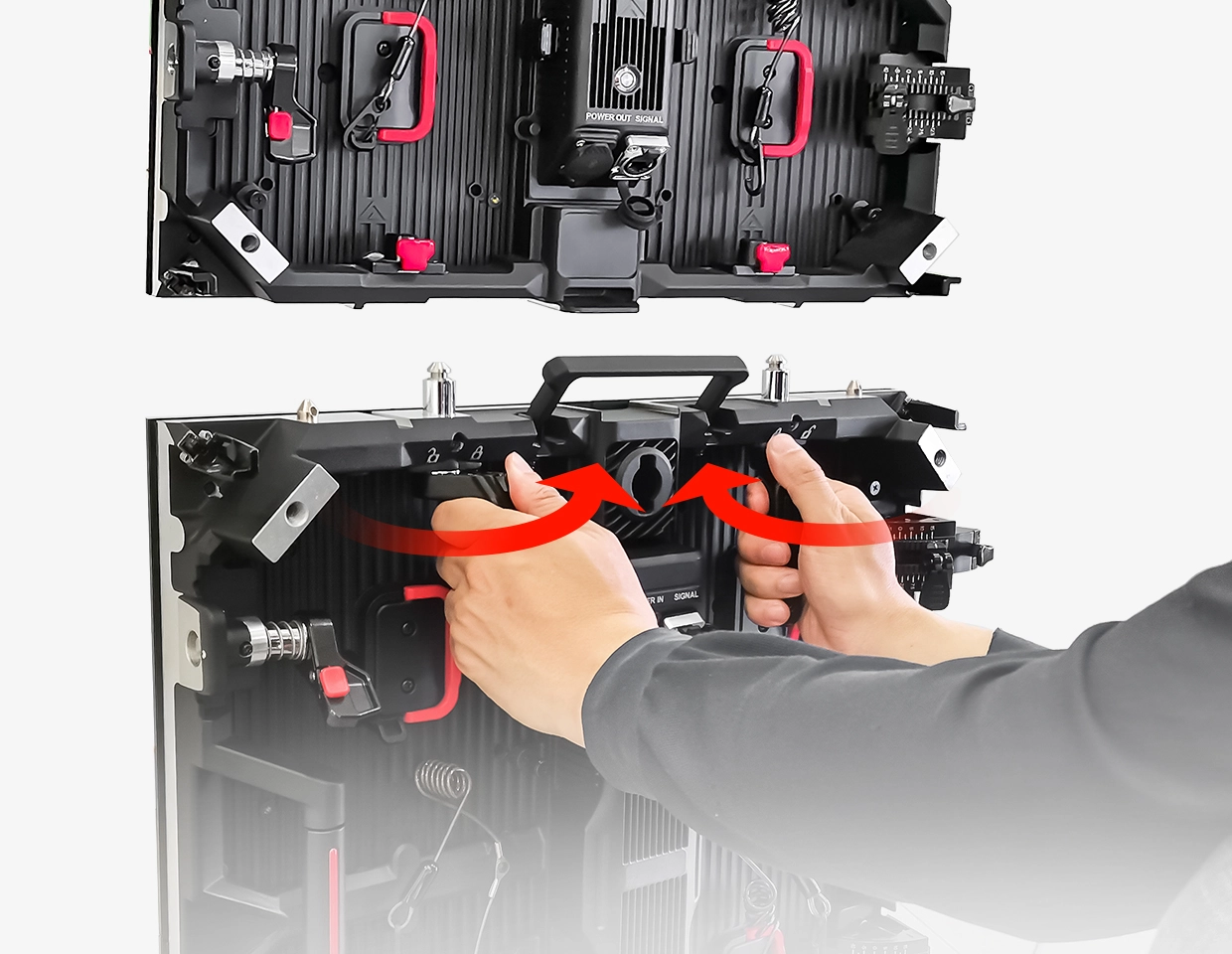

Single-Person Installation
Efficient For one-person setup-no complex steps, just simple, fast, and flexible installation.
Full Front &Rear Maintenance
C-Rock is easy for quick installation and maintenance, Magnetic modules and 500 mm / 1000 mm cabinets with quick-release control boxes make installation and servicing fast.

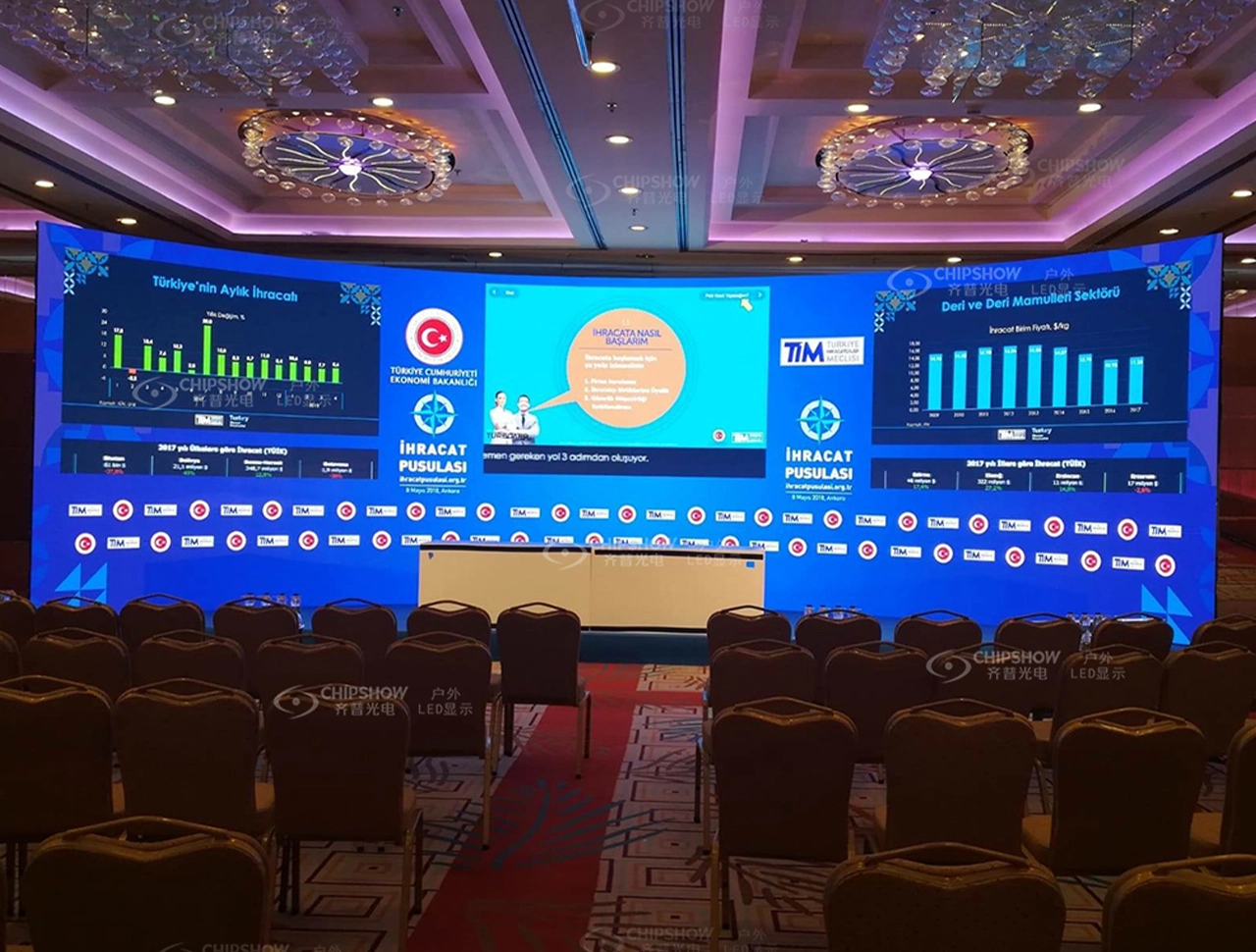

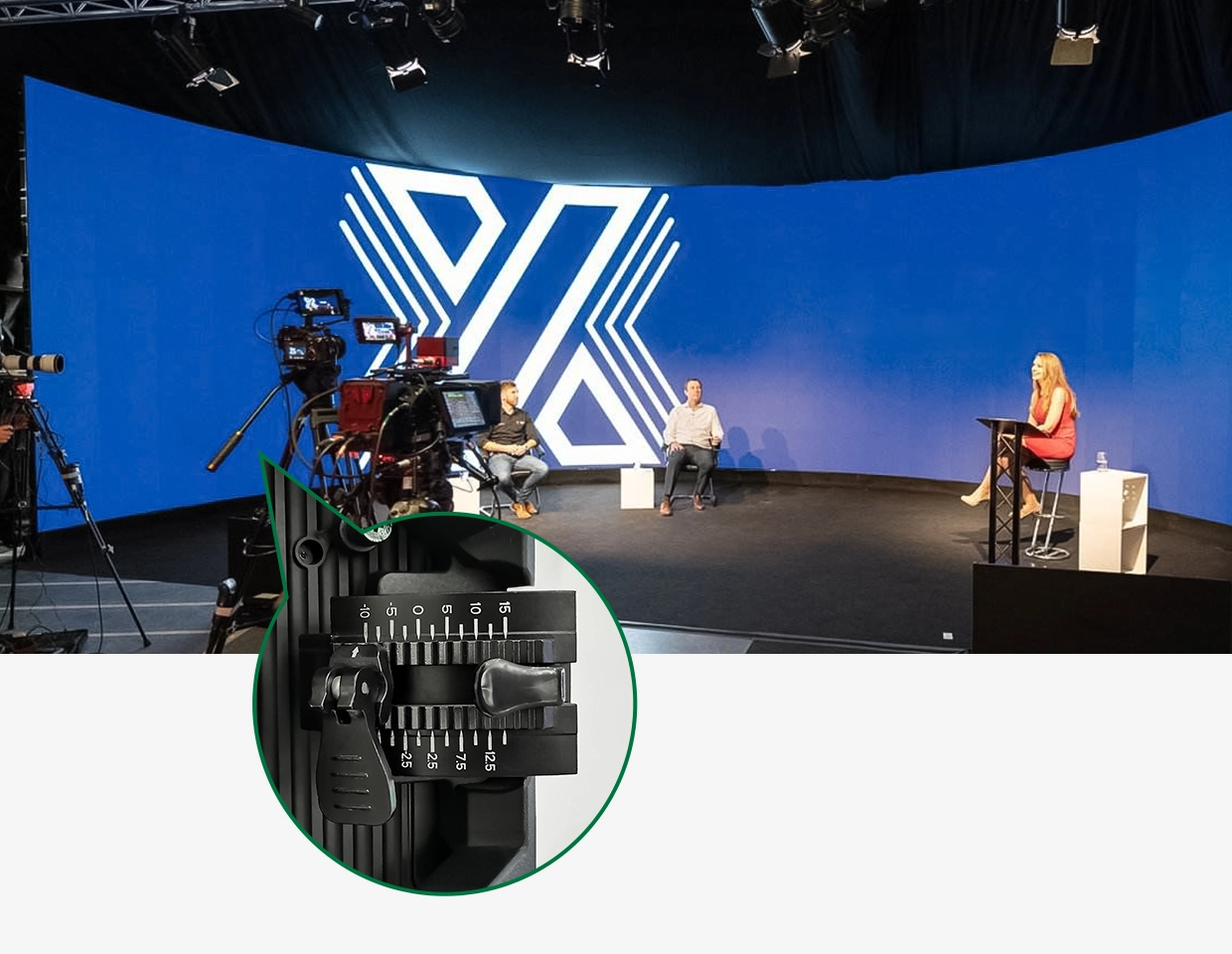

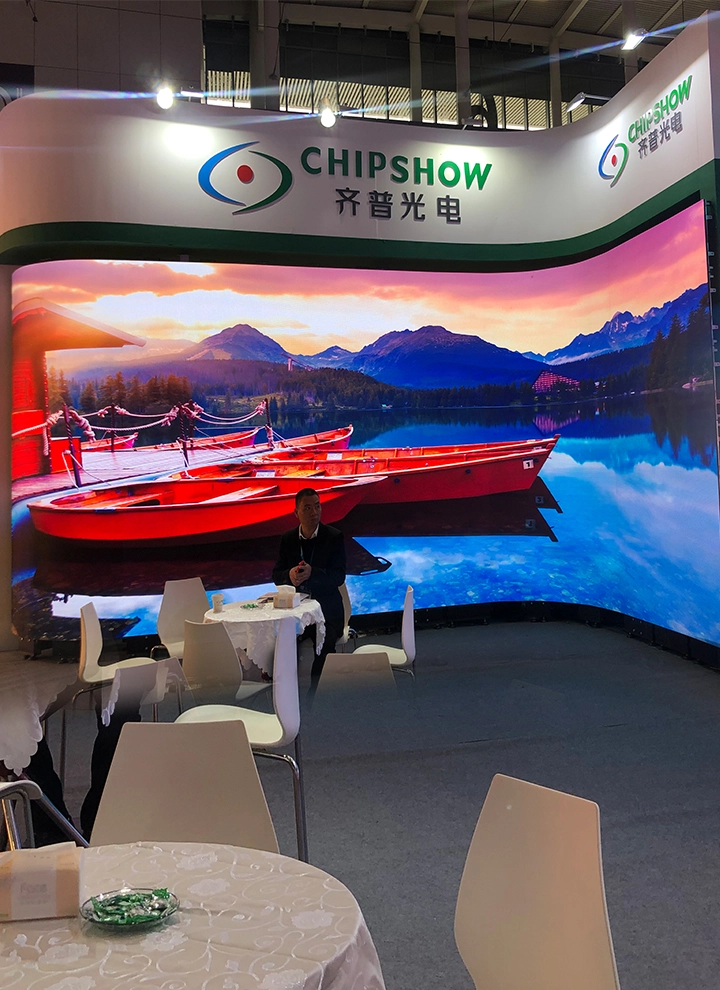

Arc Lock supports −10° to +15° curvature

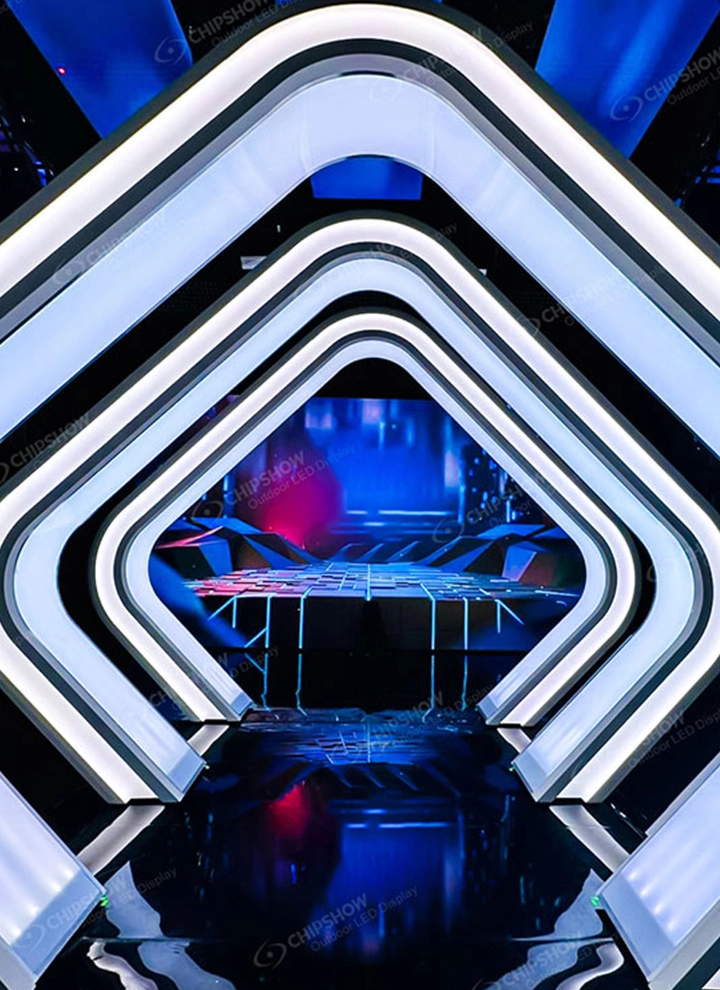

C-Rock can be installed as flat displays, also can create a curve screen, curved displays to meet stage effects.
Safety& Stability
Anti-Loosening with safety rope ,Each module uses anti-loosening screws and safety ropes to prevent movement during transport and rigging.

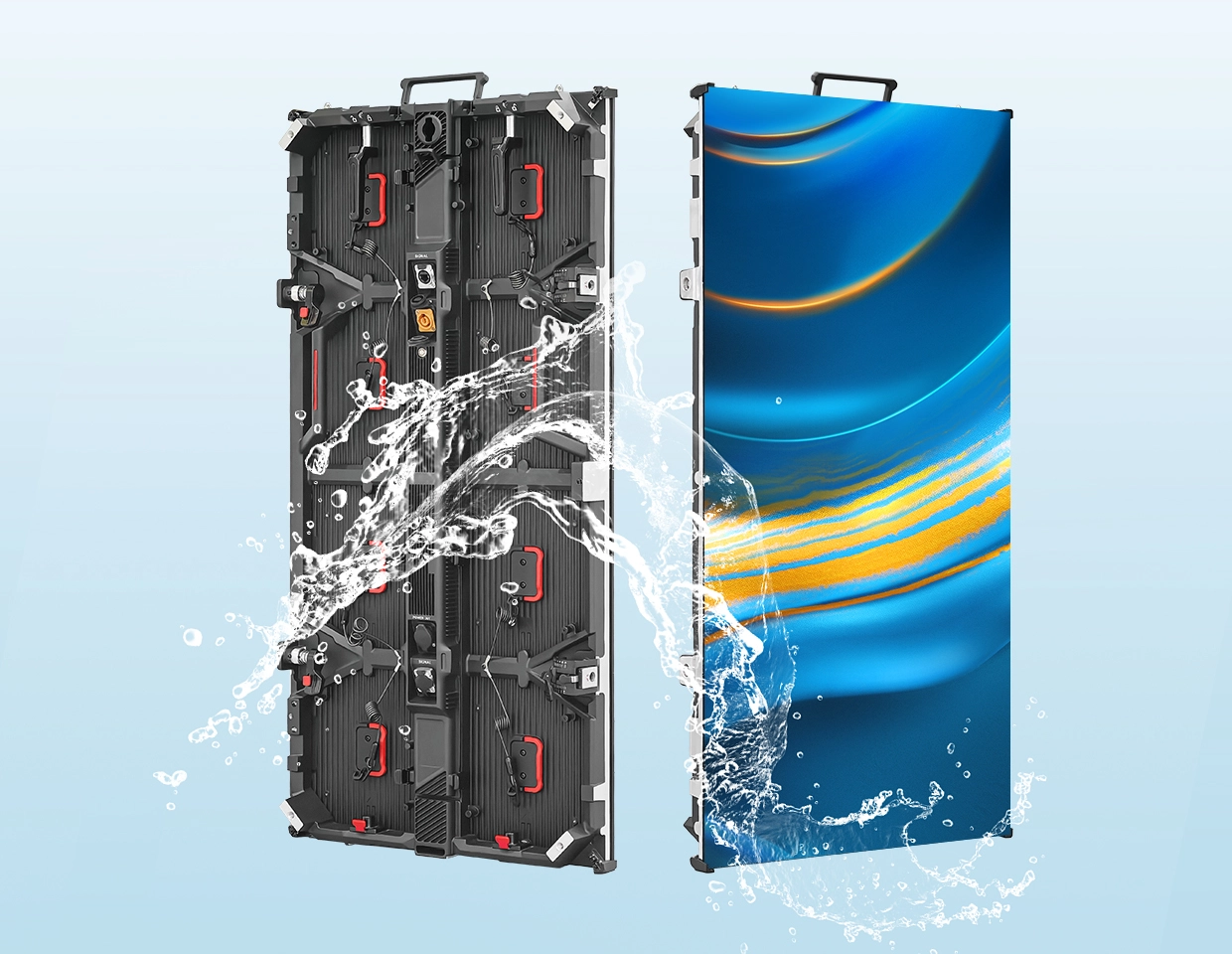

High Protection
IP40 indoor and IP54 outdoor ,suitable for typical rental environments.

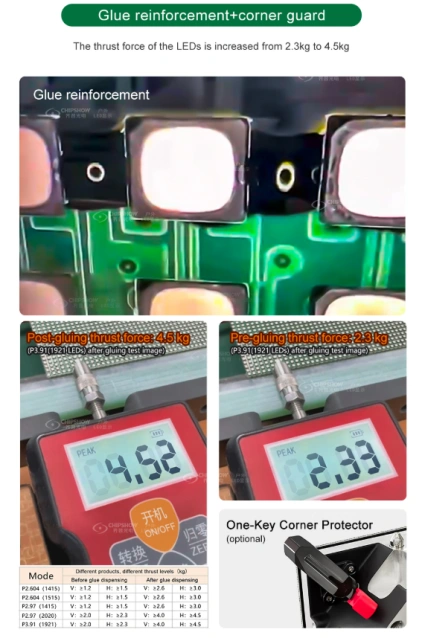

Glue reinforcement with corner guard
The LED pull-off force increases from 2.3 kg to 4.5 kg; the one-key corner protector helps prevent damage during handling.

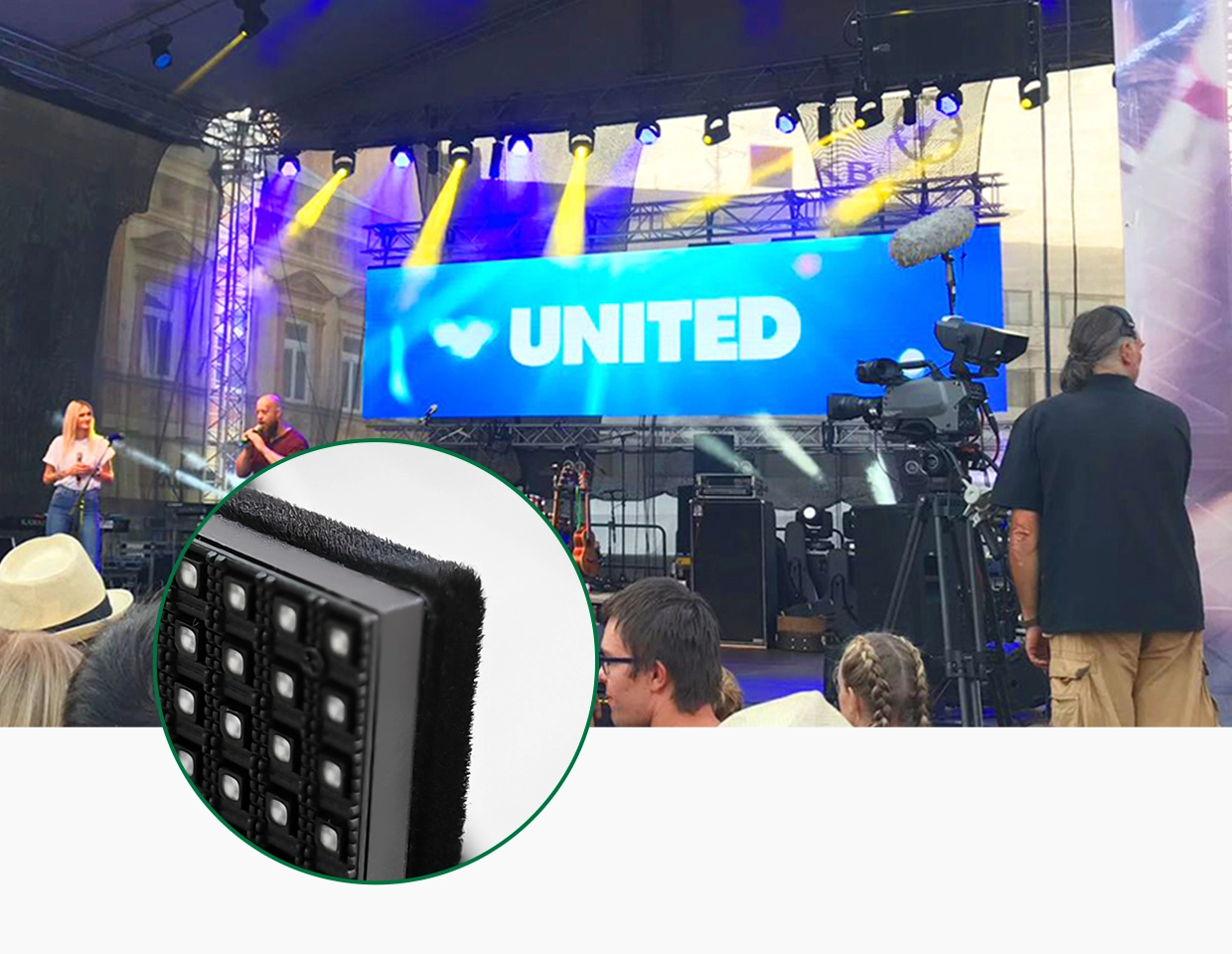

Anti-Light Leakage
Light-Shielding cotton,effectively reduces light leakage for cleaner image performance.
Camera-friendly visuals
Ideal for Background Screens High refresh rate, no flicker or ghosting when captured with DSLR or camera at 1/3000s shutter speed.
Product Parameter
* Specs below reflect the selected configuration and are for reference only. Actual parameters vary by size, pixel pitch, brightness, power and control system. Customization available
Optical
Pixel Pitch :-
LED Package :SMD, COB
Brightness :-
Contrast Ratio :5,000:1
Viewing Angle :110° H / 110° V
Refresh Rate :3840Hz (High Refresh)
Grayscale :13-bit
Physical
Material :Carbon Fiber / Mg-Alloy
Dimensions :39.37×39.37×3.30 in (1000×1000×83.75 mm)
Cabinet Weight :27.6 lb (12.5 kg)
Serviceability :Front & Rear
Gross Weight :About 110 kg (5 pcs/case)
Outer Package Size :1030×1030×525 mm (5 pcs/case)
Mounting Options :Stacking
Max Hanging :-
Max Stacking :-
Curvature :Concave 10° ~ Convex 10° (optional)
Packaging Material :Thickened Carton Packaging
IP Rating :IP65+ (Outdoor)
Control System
Control System :CHIPSHOW/Novastar
Receiving Card :Novastar
Connections & Electrical
Power Connection :-
Signal Connection :RJ45
Voltage :DC 5V (module)
Average Power :≤190 W/㎡
Max Power :≤800 W/㎡
Approvals
IP Rating :IP65+ (Outdoor)
Cretifications :-
C-Carbon P3.91
Optical
Pixel Pitch :-
LED Package :-
Brightness :-
Contrast Ratio :5,000:1
Viewing Angle :110° H / 110° V
Refresh Rate :3840Hz (High Refresh)
Grayscale :13-bit
Physical
Material :Carbon Fiber / Mg-Alloy
Dimensions :39.37×39.37×3.30 in (1000×1000×83.75 mm)
Cabinet Weight :44.1 lb (20 kg)
Serviceability :Front & Rear
Gross Weight :About 110 kg (5 pcs/case)
Outer Package Size :1030×1030×525 mm (5 pcs/case)
Mounting Options :Hanging, Stacking
Max Hanging :-
Max Stacking :-
Curvature :-
Packaging Material :Thickened Carton Packaging
IP Rating :IP65+ (Outdoor)
Control System
Control System :CHIPSHOW/Novastar
Receiving Card :Novastar
Connections & Electrical
Power Connection :-
Signal Connection :RJ45
Voltage :DC 5V (module)
Average Power :≤275 W/㎡
Max Power :≤800 W/㎡
Approvals
IP Rating :IP65+ (Outdoor)
Cretifications :-
C-Carbon P8.93
Optical
Pixel Pitch :-
LED Package :-
Brightness :-
Contrast Ratio :6,000:1
Viewing Angle :110° H / 110° V
Refresh Rate :3840Hz (High Refresh)
Grayscale :13-bit
Physical
Material :Carbon Fiber / Mg-Alloy
Dimensions :39.37×39.37×3.30 in (1000×1000×83.75 mm)
Cabinet Weight :27.6 lb (12.5 kg)
Serviceability :Front & Rear
Gross Weight :About 70 kg (5 pcs/case)
Outer Package Size :1030×1030×525 mm (5 pcs/case)
Mounting Options :Hanging, Stacking
Max Hanging :10 panels
Max Stacking :6 panels
Curvature :Concave 10° ~ Convex 10° (optional)
Packaging Material :Thickened Carton Packaging
IP Rating :IP65+ (Outdoor)
Control System
Control System :-
Receiving Card :Novastar
Connections & Electrical
Power Connection :-
Signal Connection :RJ45
Voltage :DC 5V (module)
Average Power :≤190 W/㎡
Max Power :≤560 W/㎡
Approvals
IP Rating :IP65+ (Outdoor)
Cretifications :-
Send a Comment
Product Highlights
Easy transport
Easy transport & set-up with dolly
Optional
Optional wind-resistant bracket helps reduce sway for outdoor hanging.
High-refresh
camera-friendly image quality
Creative curves
−10° to +15° concave/convex
Application
Service Highlights
End-to-End Project Support
From design to installation, we handle every step for you.
Customization for Every Scenario
Tailored LED screens for any location or shape.
Reliable Quality & Smart Maintenance
Stable performance, simple upkeep, and long lifespan.
Global Service & Fast Response
Fast delivery and responsive service worldwide.
Related Solutions
Chruch Solution
Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description.
Chruch Solution 1
Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description.
Chruch Solution 2
Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description.
Chruch Solution 3
Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description.
Frequently Asked Questions
From specs and compatibility to warranty and support, our FAQ covers everything you need to know to get the most out of your experience.
-
+86 18148555033
-
manager@chipshow.com
-
Exportweg 8 9301 ZV Roden Netherlands
What’s the real-world build speed advantage of 1×1 m cabinets?
Fewer panels and rigging points cut alignment time, reduce ladders/boom work, and simplify cable routing—especially on large stages.
