C-MAX-COB
Chipshow’s indoor high-definition indoor fixed led screen supports fully front maintenance and easy installation.
|
Module Parameter |
Item |
Specification Parameter |
|
Pixel Pitch、Resolution rate、size |
1.53mm、208*104、320*160*15mm |
|
|
Pixel color、 Pixel LED
|
1R1G1B、COB |
|
|
Working voltage、Module Power |
DC4.5V、≤11W
|
|
|
Driving IC、Driving way |
ICN1065AP、1/52 |
|
|
HUB |
HUB320 |
|
|
Cabinet Parameter |
Material、Cabinet Weight(kg/Cabinet) |
magnesium alloy、7.5kg/Cabinet |
|

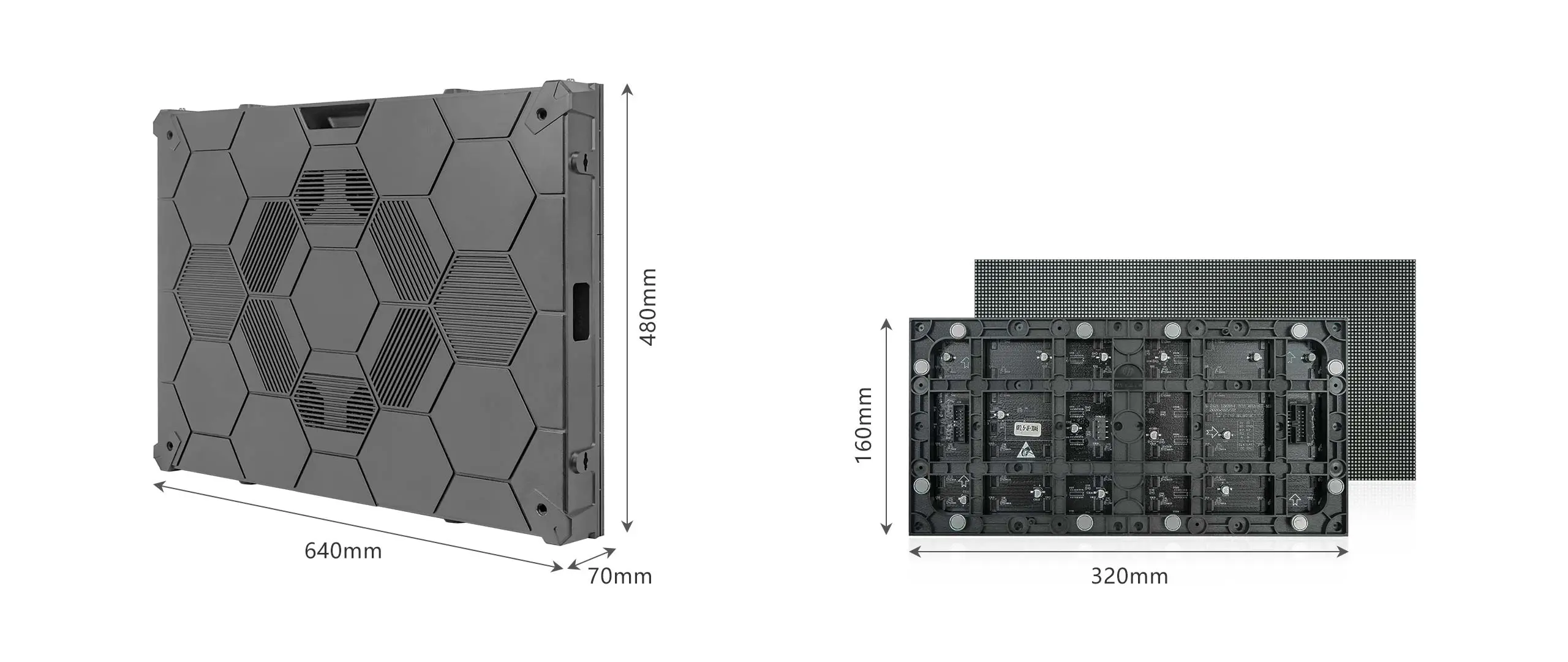

Resolution rate、size、Module quantity |
416*312Dots、640*480*70mm、2*3 |
|
|
Density |
422753 Dots/㎡ |
|
|
White balance 、Color temperature |
600 CD/㎡、9300K |
|
|
view angel、Non-Flatness、Module interval |
H/V：160°/160°、＜0.2mm、＜0.2mm |
|
|
Maximal power/㎡、Average power/㎡ |
275W/㎡、95W/㎡ |
|
|
Frame frequency、Refresh frequency、Gray grade |
60Hz、3840Hz、13bit |
|
|
Control system、System supports |
CHIPSHOW，Windows XP，WIN 7 |
|
|
Working temperature、Protection grade |
-20~50℃、Front/Back：IP40 |
|
|
|
*Reference information, different configurations, different parameters |
|
- High Reliability: COB LED displays have shown superiority in waterproofing, moisture-proof, and easy cleaning.
- Durable to Collision: COB surface hardness up to 4H, it can significantly reduce the issue of dead lights caused by collisions during transportation and installation.
- Good Compatibility: The cabinet can be quickly replaced with module of the pixel pitch from P1.25 to P4, and images can be upgraded to higher quality with lower cost;

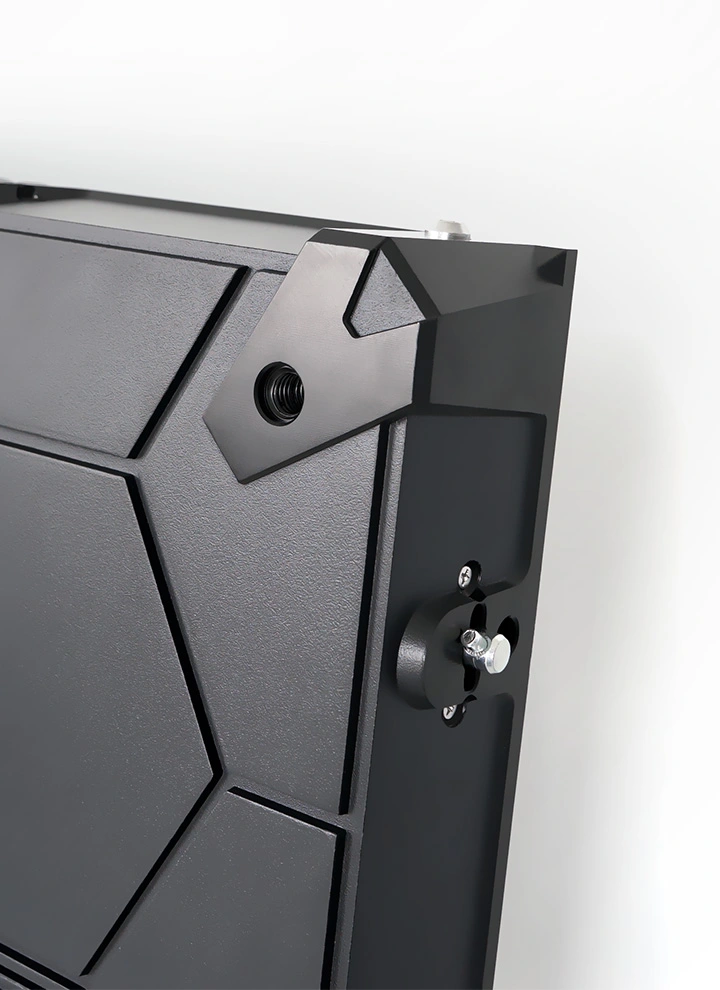

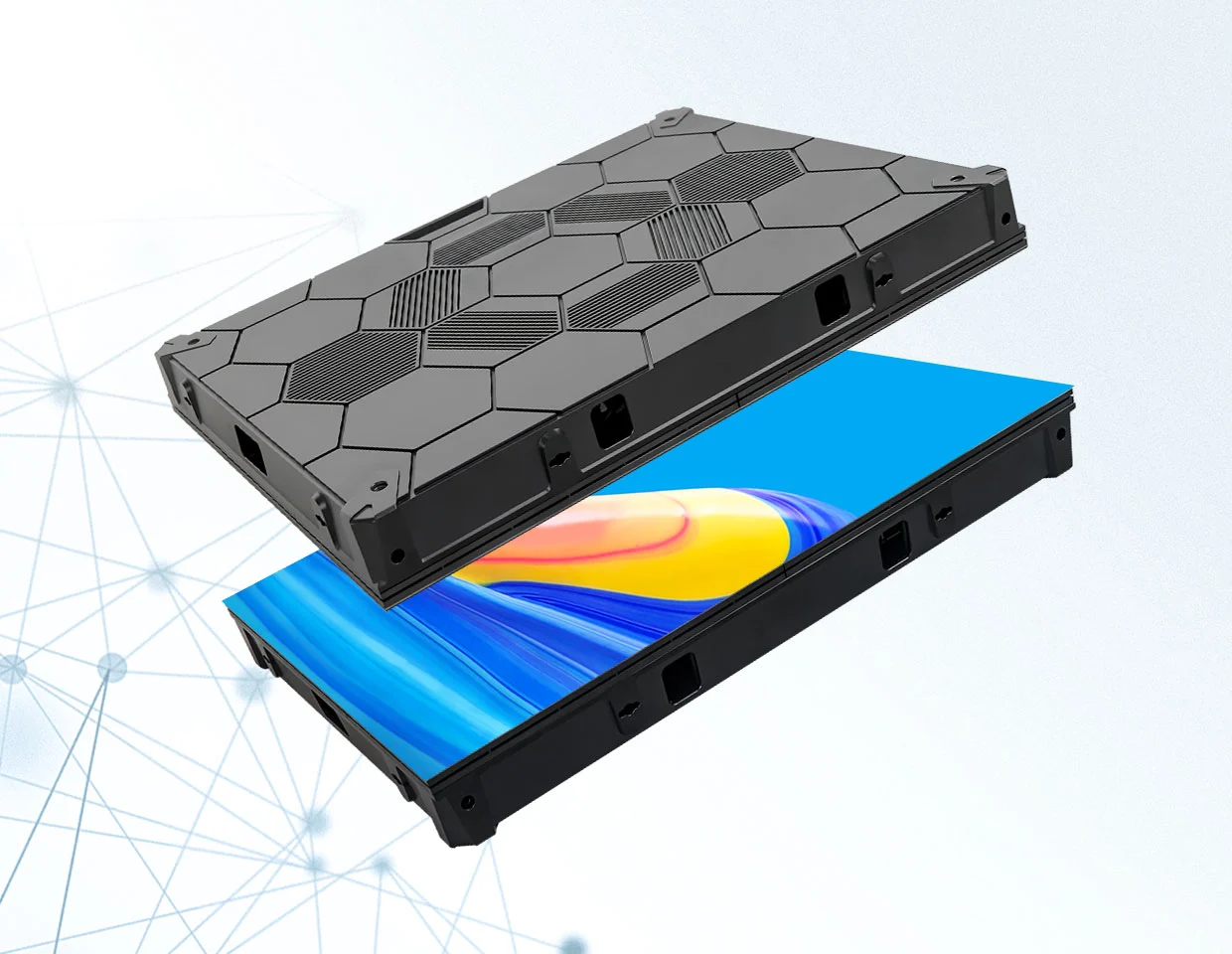

- Ultra-light and thin: Magnesium alloy cabinet, light-weighted, thin, beautiful appearance;

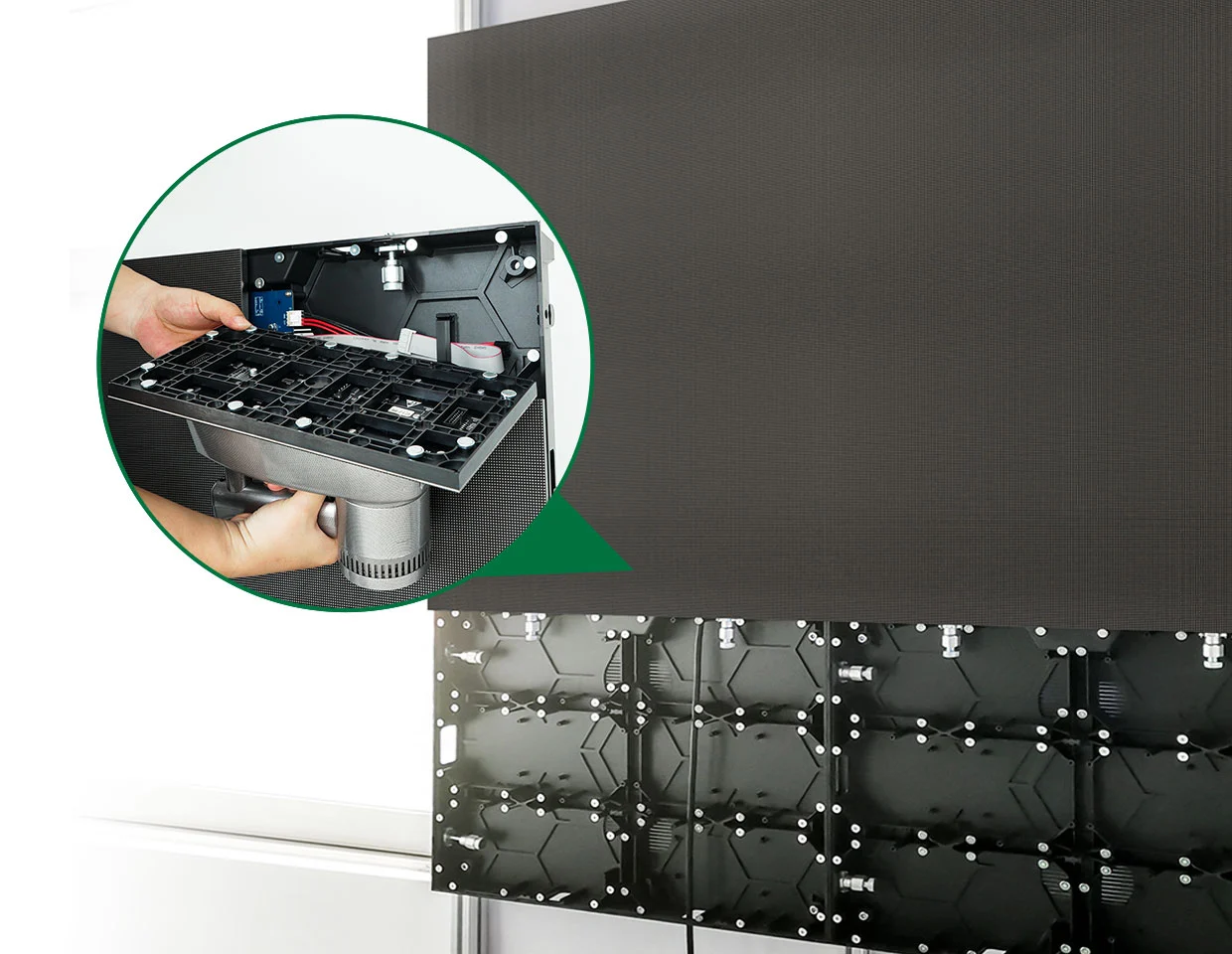

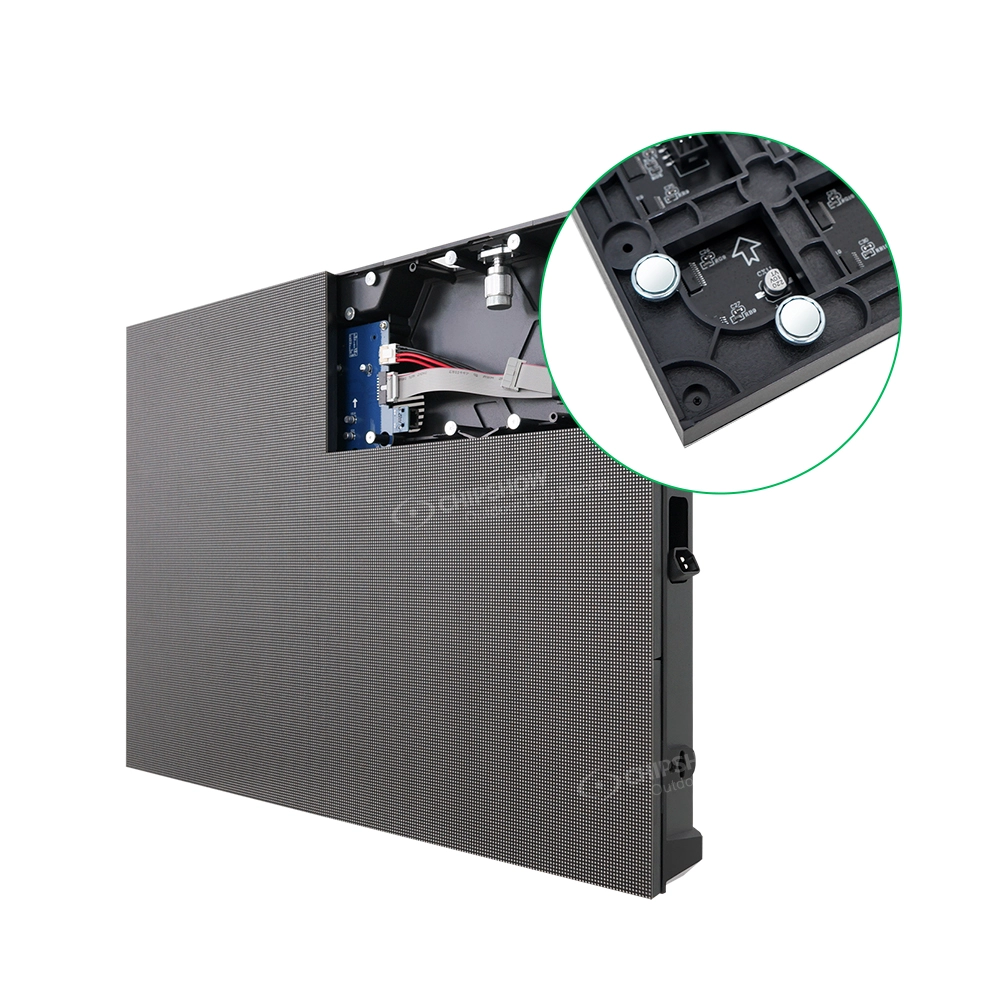

- Wall-mounted Installation: Modules, power supplies, and system cards can be fully front maintenance; space-saving, suitable for high-end commercial display occasions;
- Ratio: Can be assembled to 4:3, 16:9 large screens; the same video source ratio as LCD, and can directly replace the original LCD.

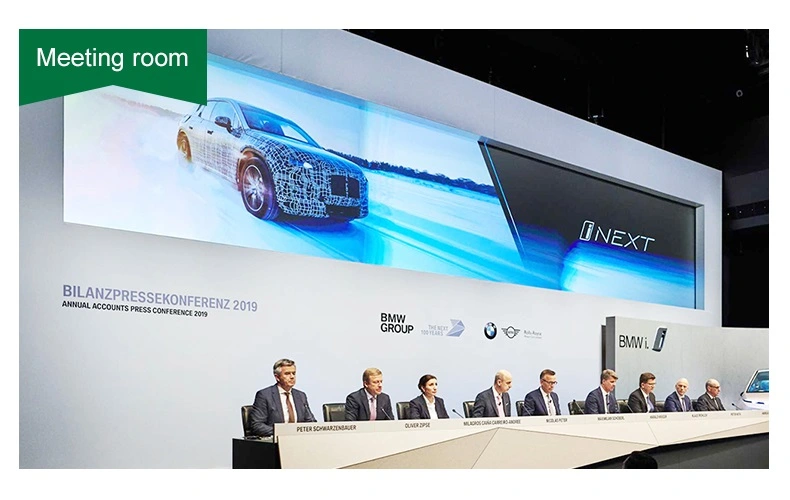

- Widely used in auditorium stage, conference room, banquet hall, exhibition studio, traffic command, security monitoring and other occasions;
Share
C-Max indoor HD LED screen
Chipshow’s C-Max series indoor HD LED fixed screen supports fully front maintenance, which makes maintenance simple and quick and can achieve fully wall-mounted installation. For high-end commercial display occasions, it can be assembled into 4:3, 16:9 large screens. The same video source ratio as LCD, can directly replace the original LCD. The cabinet can quickly replace 1.25~4mm pixel pitch modules, upgrading to higher image quality at low cost.
Product Parameter
* Specs below reflect the selected configuration and are for reference only. Actual parameters vary by size, pixel pitch, brightness, power and control system. Customization available
Optical
Pixel Pitch :-
LED Package :SMD, COB
Brightness :-
Contrast Ratio :5,000:1
Viewing Angle :110° H / 110° V
Refresh Rate :3840Hz (High Refresh)
Grayscale :13-bit
Physical
Material :Carbon Fiber / Mg-Alloy
Dimensions :39.37×39.37×3.30 in (1000×1000×83.75 mm)
Cabinet Weight :27.6 lb (12.5 kg)
Serviceability :Front & Rear
Gross Weight :About 110 kg (5 pcs/case)
Outer Package Size :1030×1030×525 mm (5 pcs/case)
Mounting Options :Stacking
Max Hanging :-
Max Stacking :-
Curvature :Concave 10° ~ Convex 10° (optional)
Packaging Material :Thickened Carton Packaging
IP Rating :IP65+ (Outdoor)
Control System
Control System :CHIPSHOW/Novastar
Receiving Card :Novastar
Connections & Electrical
Power Connection :-
Signal Connection :RJ45
Voltage :DC 5V (module)
Average Power :≤190 W/㎡
Max Power :≤800 W/㎡
Approvals
IP Rating :IP65+ (Outdoor)
Cretifications :-
C-Carbon P3.91
Optical
Pixel Pitch :-
LED Package :-
Brightness :-
Contrast Ratio :5,000:1
Viewing Angle :110° H / 110° V
Refresh Rate :3840Hz (High Refresh)
Grayscale :13-bit
Physical
Material :Carbon Fiber / Mg-Alloy
Dimensions :39.37×39.37×3.30 in (1000×1000×83.75 mm)
Cabinet Weight :44.1 lb (20 kg)
Serviceability :Front & Rear
Gross Weight :About 110 kg (5 pcs/case)
Outer Package Size :1030×1030×525 mm (5 pcs/case)
Mounting Options :Hanging, Stacking
Max Hanging :-
Max Stacking :-
Curvature :-
Packaging Material :Thickened Carton Packaging
IP Rating :IP65+ (Outdoor)
Control System
Control System :CHIPSHOW/Novastar
Receiving Card :Novastar
Connections & Electrical
Power Connection :-
Signal Connection :RJ45
Voltage :DC 5V (module)
Average Power :≤275 W/㎡
Max Power :≤800 W/㎡
Approvals
IP Rating :IP65+ (Outdoor)
Cretifications :-
C-Carbon P8.93
Optical
Pixel Pitch :-
LED Package :-
Brightness :-
Contrast Ratio :6,000:1
Viewing Angle :110° H / 110° V
Refresh Rate :3840Hz (High Refresh)
Grayscale :13-bit
Physical
Material :Carbon Fiber / Mg-Alloy
Dimensions :39.37×39.37×3.30 in (1000×1000×83.75 mm)
Cabinet Weight :27.6 lb (12.5 kg)
Serviceability :Front & Rear
Gross Weight :About 70 kg (5 pcs/case)
Outer Package Size :1030×1030×525 mm (5 pcs/case)
Mounting Options :Hanging, Stacking
Max Hanging :10 panels
Max Stacking :6 panels
Curvature :Concave 10° ~ Convex 10° (optional)
Packaging Material :Thickened Carton Packaging
IP Rating :IP65+ (Outdoor)
Control System
Control System :-
Receiving Card :Novastar
Connections & Electrical
Power Connection :-
Signal Connection :RJ45
Voltage :DC 5V (module)
Average Power :≤190 W/㎡
Max Power :≤560 W/㎡
Approvals
IP Rating :IP65+ (Outdoor)
Cretifications :-
Send a Comment
Product Highlights
High precision
Die-cast aluminum cabinet, high precision and good flatness.
Wall-mounted installation
Modules, power supplies, and system cards can be fully maintained from the front, suitable for high-end commercial display occasions.
Adaptation ratio
Can be assembled to 4:3, 16:9 large screens. The same video source ratio as LCD, and can directly replace the original LCD.
Applications
Auditorium stage, conference room, banquet hall, exhibition studio, traffic command, security monitoring and other occasions.
Application
Service Highlights
Pre-sales consultation
Modular design, fast installation
Deployment support & training
Front & Rear maintaince
Spare-parts & warranty program
IP31 protection grade
Remote assistance
Chinese factory stock, ready for delivery
