C-Carbon
Lightweight carbon-fiber rental screen for fast builds and high-impact visuals.
1×1 m large cabinet, front & rear service, magnetic alignment. Optional high-transparency mesh (65%) for stage side screens and architectural integration.
C-Carbon
Lightweight carbon-fiber rental screen for fast builds and high-impact visuals.
1×1 m large cabinet, front & rear service, magnetic alignment. Optional high-transparency mesh (65%) for stage side screens and architectural integration.
| Pixel Pitch | 3.91mm | 8.93mm |
| Cabinet Size | 1000×1000×83.75 mm | |
| Weight | 20 kg / cabinet | 12.5 kg / cabinet |
| Transparency | — | 65% |
| Brightness | 6000 cd/㎡ | 4000 cd/㎡ |
| Refresh Rate | 3840 Hz / 7680 Hz | |
- Ultra-light frame: carbon fiber + Mg alloy; as low as 12.5 kg/㎡ (P8.93).
- Faster setup: 1×1 m large cabinet: fewer seams & rigging points
- Fast Front/Rear Maintenance: magnetic modules & quick-release power box.
- Weatherproof: IP65 front & back; smart fan control for stable operation.
- High transparency option: 65% (P8.93) keeps views and reduces wind load.
- Stable image: 3840-7680 Hz refresh; up to 6000 nits (P3.91).
Share
1×1 m size, fewer seams
Large 1000×1000 mm cabinet reduces panel count and rigging points, speeding up assembly on tight schedules.

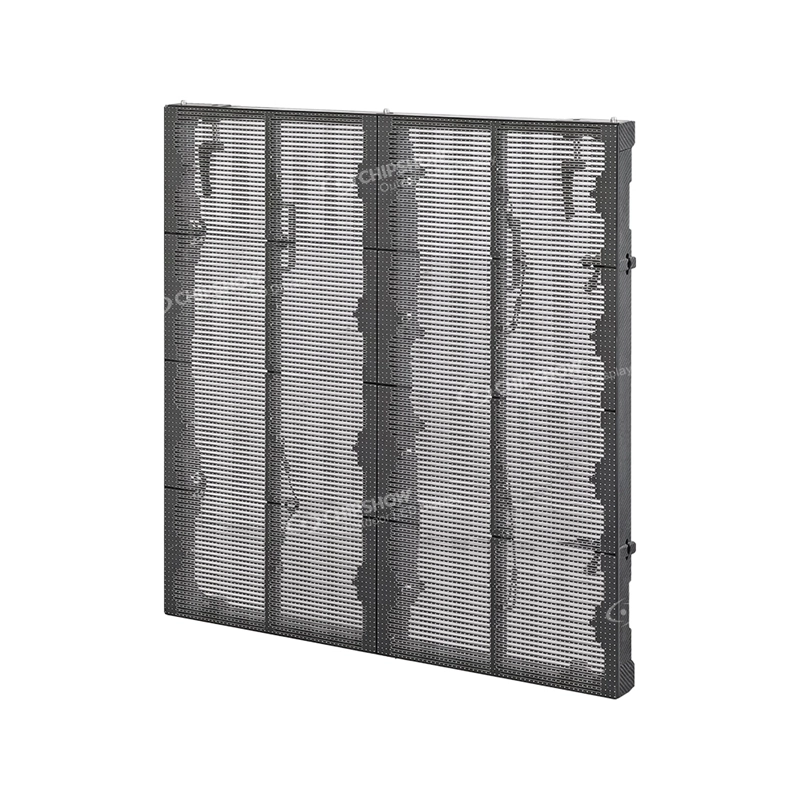

High-transparency mesh (P8.93)
With 65% transparency, the mesh version blends into stage sets and façades, maintaining sightlines and reducing wind resistance.
Magnetic design, full F/R service

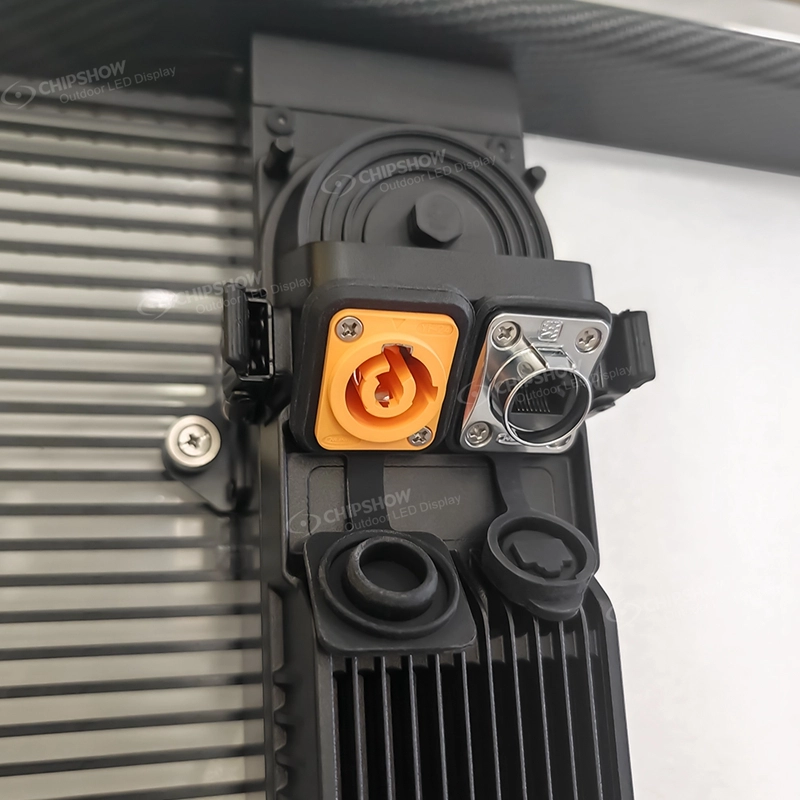

Magnetic modules enable precise alignment and fast swap-outs. The control/power box is quick-release to minimize downtime.
Smart heat dissipation
Intelligent fans adjust speed by internal temperature, enhancing cooling efficiency while reducing noise and energy waste.
Built for rental
Supports stacking / hanging. Carbon-fiber + Mg-alloy structure balances strength and weight for frequent load-in/out.
Outdoor durability
Front & back IP65 protection and a wide temperature working range ensure reliability in harsh outdoor environments.
Product Parameter
* Specs below reflect the selected configuration and are for reference only. Actual parameters vary by size, pixel pitch, brightness, power and control system. Customization available
Optical
Pixel Pitch :-
LED Package :-
Brightness :-
Contrast Ratio :5,000:1, 6,000:1
Viewing Angle :110° H / 110° V
Refresh Rate :3840Hz (High Refresh)
Grayscale :13-bit
Physical
Material :Carbon Fiber / Mg-Alloy
Dimensions :39.37×39.37×3.30 in (1000×1000×83.75 mm)
Cabinet Weight :27.6 lb (12.5 kg), 44.1 lb (20 kg)
Serviceability :Front & Rear
Gross Weight :About 110 kg (5 pcs/case), About 70 kg (5 pcs/case)
Outer Package Size :1030×1030×525 mm (5 pcs/case)
Mounting Options :Hanging, Stacking
Max Hanging :-, 10 panels
Max Stacking :-, 6 panels
Curvature :-, Concave 10° ~ Convex 10° (optional)
Packaging Material :Thickened Carton Packaging
IP Rating :IP65+ (Outdoor)
Control System
Control System :CHIPSHOW/Novastar
Receiving Card :Novastar
Connections & Electrical
Power Connection :-
Signal Connection :RJ45
Voltage :DC 5V (module)
Average Power :≤190 W/㎡, ≤275 W/㎡
Max Power :≤560 W/㎡, ≤800 W/㎡
Approvals
IP Rating :IP65+ (Outdoor)
Cretifications :-
C-Carbon P3.91
Optical
Pixel Pitch :-
LED Package :-
Brightness :-
Contrast Ratio :5,000:1
Viewing Angle :110° H / 110° V
Refresh Rate :3840Hz (High Refresh)
Grayscale :13-bit
Physical
Material :Carbon Fiber / Mg-Alloy
Dimensions :39.37×39.37×3.30 in (1000×1000×83.75 mm)
Cabinet Weight :44.1 lb (20 kg)
Serviceability :Front & Rear
Gross Weight :About 110 kg (5 pcs/case)
Outer Package Size :1030×1030×525 mm (5 pcs/case)
Mounting Options :Hanging, Stacking
Max Hanging :-
Max Stacking :-
Curvature :-
Packaging Material :Thickened Carton Packaging
IP Rating :IP65+ (Outdoor)
Control System
Control System :CHIPSHOW/Novastar
Receiving Card :Novastar
Connections & Electrical
Power Connection :-
Signal Connection :RJ45
Voltage :DC 5V (module)
Average Power :≤275 W/㎡
Max Power :≤800 W/㎡
Approvals
IP Rating :IP65+ (Outdoor)
Cretifications :-
C-Carbon P8.93
Optical
Pixel Pitch :-
LED Package :-
Brightness :-
Contrast Ratio :6,000:1
Viewing Angle :110° H / 110° V
Refresh Rate :3840Hz (High Refresh)
Grayscale :13-bit
Physical
Material :Carbon Fiber / Mg-Alloy
Dimensions :39.37×39.37×3.30 in (1000×1000×83.75 mm)
Cabinet Weight :27.6 lb (12.5 kg)
Serviceability :Front & Rear
Gross Weight :About 70 kg (5 pcs/case)
Outer Package Size :1030×1030×525 mm (5 pcs/case)
Mounting Options :Hanging, Stacking
Max Hanging :10 panels
Max Stacking :6 panels
Curvature :Concave 10° ~ Convex 10° (optional)
Packaging Material :Thickened Carton Packaging
IP Rating :IP65+ (Outdoor)
Control System
Control System :-
Receiving Card :Novastar
Connections & Electrical
Power Connection :-
Signal Connection :RJ45
Voltage :DC 5V (module)
Average Power :≤190 W/㎡
Max Power :≤560 W/㎡
Approvals
IP Rating :IP65+ (Outdoor)
Cretifications :-
Send a Comment
Product Highlights
Energy Saving
The screen adopts a 4.6V power supply, and the brightness level can reach more than 5000CD/㎡
Good Display Effect
Good Display Effect, Good Display Effect, Good Display Effect.
Dual Maintenance
Dual Maintenance, Dual Maintenance, Dual Maintenance.
Multi-Molding
Multi-Molding, Multi-Molding, Multi-Molding, Multi-Molding.
Application
Service Highlights
Pre-sales consultation
Application review, pixel pitch & brightness recommendations, basic load/rigging guidance.
Deployment support & training
Remote or on-site guidance for first builds; crew training on assembly, cabling and service.
Spare-parts & warranty program
Recommended spares kit for rental fleets, standard warranty with optional extensions.
Remote assistance
Troubleshooting, firmware/setting guidance and documentation updates via ticket, email or phone.
Application Scenario
Exhibition
Showroom
Related Solutions
Chruch Solution
Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description.
Chruch Solution 1
Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description.
Chruch Solution 2
Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description.
Chruch Solution 3
Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description, Solution Description.
Recommend
Frequently Asked Questions
From specs and compatibility to warranty and support, our FAQ covers everything you need to know to get the most out of your experience.
-
+86 18148555033
-
manager@chipshow.com
-
Exportweg 8 9301 ZV Roden Netherlands
What’s the real-world build speed advantage of 1×1 m cabinets?
Fewer panels and rigging points cut alignment time, reduce ladders/boom work, and simplify cable routing—especially on large stages.
